D4PMO Series- Double Seat Mix Proof Valve



Overview

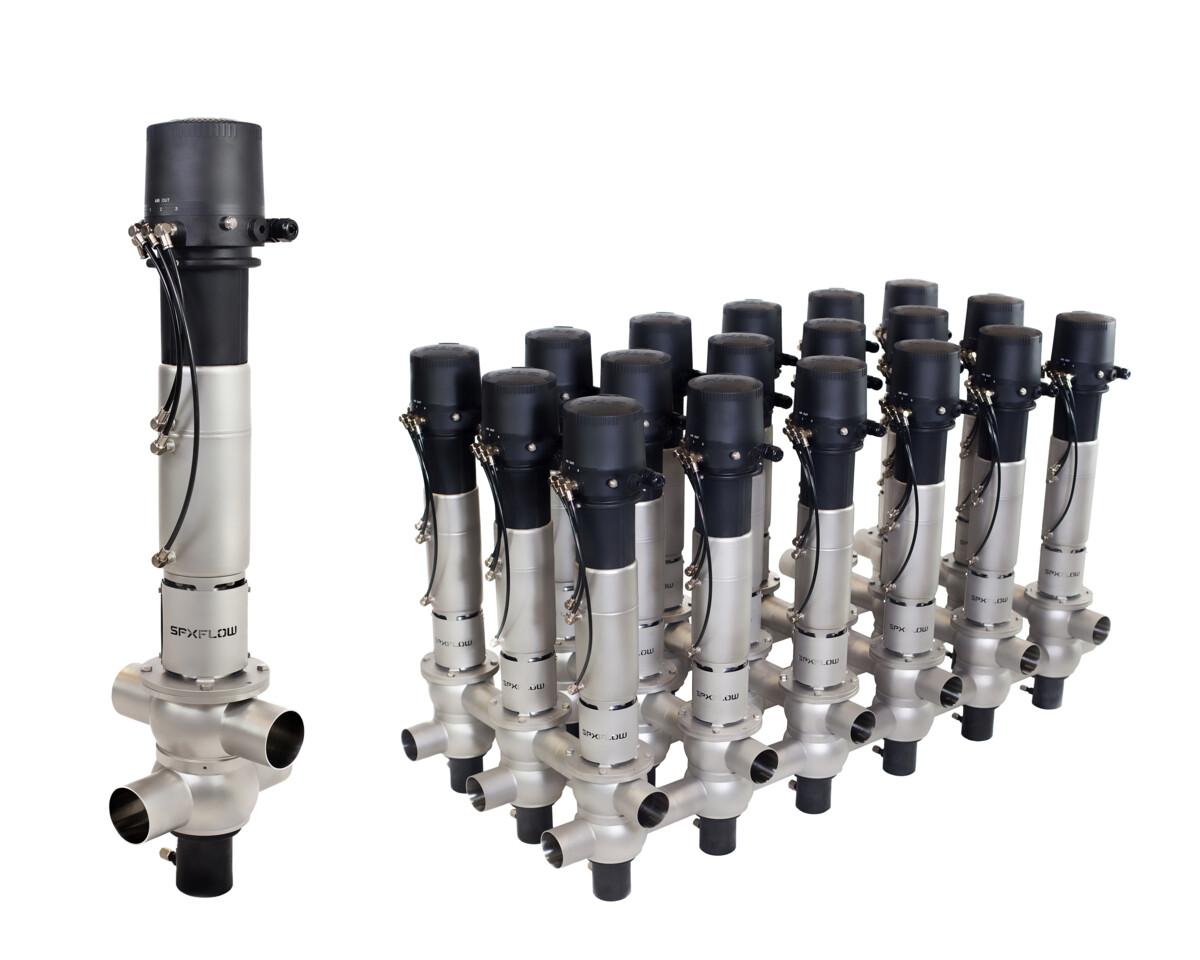

The D4PMO valve family is used for the reliable separation of dissimilar fluids in Grade A dairies. The D4PMO series fulfills todays customer demands for production flexibility, increased productivity, ROI, and improved product quality.

High Value, Low Life Cycle Costs:

  • Newest generation continuous process PMO valve helps maximize plant uptime and allows flexibility in cleaning and dairy production schedules
  • "All In" standard features provide exceptional value
  • Reduced inventory costs wit hsames seal kit used on multiple size ranges (one kit for 1.5"-3" vavles)
  • Reduced CIP losses improve cost savings
  • Low air consumption and air supply requirements
  • Long housing ports ease orbital welding and manifold buidling
  • Integrated shaft seal flush reduces need for external piping
  • Replacement inserts available for easy upgrade of existing DA3+ valves


Reliable Performance

The D4PMO has the following features standard:
  • Fully balanced design helps to prevent hydraulic blocking, withstand pressure spikes, and enables flexible flow direction without slamming
  • Light overall weight helps support handling without lifting tools
  • Slim stainless actuator is fully enclosed to prevent fluid ingress
  • Range of control units and bus communication for automated operation
  • No compressed air needed for removal and servicing


Cleanability:

  • Designed to the latest 3-A Sanitary Stanard 85-02 for PMO compliance
  • Demonstrated ability to clean product-contact surfaces without full actuation of the valve
  • Integrated flow channels clean product-contact portions of the upper balancer during seat lift movement so no cumbersome adapters or external piping are required.


Specifications

Sizes:
  • OD Tube: 1.5"- 6"
Product Wetted Parts: 1.4404/AISI 316L

Non Product Wetted Parts: AISI 304/1.4301

Seal Materials:

  • Standard EPDM
  • Optional: HNBR, FKM

Surface Finish:

  • Product Contact: 32 Ra
  • Non-Product Contact: Glass beaded

Required Air Pressure: 73 psi



Performance

Pressure Ratings:
  • Operating Pressure: 145 PSI (10 bar) maximum line pressure

Maximum Temperature:

  • EPDM & HNR: 275 F/135 C (intermittent)
  • FPM: 275 F/135 C

Sterilization Temperature:

  • EPDM & HNBR: 284 F/140 C


Control Units

CU4 & CU4+ Series
  • Automated control and position monitoring for reliable processing
  • Reduces compressed air and electrical connections
  • Helps reduced external solenoid valve cabinets
  • Accelerates valve response time
  • Innovative seat lift detection is fully integrated without need for external sensor wiring to provide additional position monitoring
  • Reliability and long service life- robust clamp connection, reinforced stainless steel air coupling threads to avoid air leakages, and water tight seals
  • Ease of operation- contains manual override solenoids and adjustment screw to throttle air flow to actuator to ensure optimal opening and closing
  • Clarity- clear and bright indication of valve position- 5 dioes in LED panel and convenient location
  • Standardization- same control top used on other SPXFlow valves lines
  • NEMA 6 washdown rating

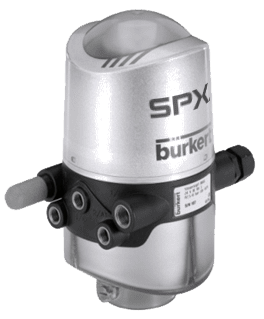

Burkert 8681 Control Unit
  • Contact free position sensor including (3) programmable feedback signals
  • Positions easily taught via intuitive push buttons or Autotune feature to ensure quick & easy set-up
  • Ultra-bright 360° visual LED position indication with adjustable red, yellow, & green color assignments provide clarity from all points of view and avoid confusion
  • Manual override and air throttle adjustable solenoids to assist start-up, maintenance, and troubleshooting
  • Up to IP69K washdown rating available (IP65/67 as standard) for high washdown environments
  • Built-in microcontroller tracks cycles and alerts operator when preventive maintenance is required
  • Simple and robust stainless steel adapter & chemically resistant polycarbonate head
  • Supplied by industry leading Burkert Fluid Controls

































Videos







Datasheets

D4PMO Series Double Seat Mix Proof Valves
D4 Series Valve Key

Success Stories

Valves in Action- D4PMO Mix Proof Valve HP Hood Dairy
Valves in Action- D4PMO Mix Proof Valve- Global Dairy Company in Wisconsin

Manuals

D4PMO Series Double Seat Mix Proof Valves
8681 Control Unit
8681 Control Unit Quickstart Guide
APV CU4 As-interface Control Unit
APV CU4 Direct Connect Control Unit

Press Releases

D4PMO Mix proof Valve Promises to be a WInner for US Dairy Applications

 D4PMO Series- Double Seat Mix Proof Valve



Overview

The D4PMO valve family is used for the reliable separation of dissimilar fluids in Grade A dairies. The D4PMO series fulfills todays customer demands for production flexibility, increased productivity, ROI, and improved product quality.

High Value, Low Life Cycle Costs:

  • Newest generation continuous process PMO valve helps maximize plant uptime and allows flexibility in cleaning and dairy production schedules
  • "All In" standard features provide exceptional value
  • Reduced inventory costs wit hsames seal kit used on multiple size ranges (one kit for 1.5"-3" vavles)
  • Reduced CIP losses improve cost savings
  • Low air consumption and air supply requirements
  • Long housing ports ease orbital welding and manifold buidling
  • Integrated shaft seal flush reduces need for external piping
  • Replacement inserts available for easy upgrade of existing DA3+ valves


Reliable Performance

The D4PMO has the following features standard:
  • Fully balanced design helps to prevent hydraulic blocking, withstand pressure spikes, and enables flexible flow direction without slamming
  • Light overall weight helps support handling without lifting tools
  • Slim stainless actuator is fully enclosed to prevent fluid ingress
  • Range of control units and bus communication for automated operation
  • No compressed air needed for removal and servicing


Cleanability:

  • Designed to the latest 3-A Sanitary Stanard 85-02 for PMO compliance
  • Demonstrated ability to clean product-contact surfaces without full actuation of the valve
  • Integrated flow channels clean product-contact portions of the upper balancer during seat lift movement so no cumbersome adapters or external piping are required.


Specifications

Sizes:
  • OD Tube: 1.5"- 6"
Product Wetted Parts: 1.4404/AISI 316L

Non Product Wetted Parts: AISI 304/1.4301

Seal Materials:

  • Standard EPDM
  • Optional: HNBR, FKM

Surface Finish:

  • Product Contact: 32 Ra
  • Non-Product Contact: Glass beaded

Required Air Pressure: 73 psi



Performance

Pressure Ratings:
  • Operating Pressure: 145 PSI (10 bar) maximum line pressure

Maximum Temperature:

  • EPDM & HNR: 275 F/135 C (intermittent)
  • FPM: 275 F/135 C

Sterilization Temperature:

  • EPDM & HNBR: 284 F/140 C


Control Units

CU4 & CU4+ Series
  • Automated control and position monitoring for reliable processing
  • Reduces compressed air and electrical connections
  • Helps reduced external solenoid valve cabinets
  • Accelerates valve response time
  • Innovative seat lift detection is fully integrated without need for external sensor wiring to provide additional position monitoring
  • Reliability and long service life- robust clamp connection, reinforced stainless steel air coupling threads to avoid air leakages, and water tight seals
  • Ease of operation- contains manual override solenoids and adjustment screw to throttle air flow to actuator to ensure optimal opening and closing
  • Clarity- clear and bright indication of valve position- 5 dioes in LED panel and convenient location
  • Standardization- same control top used on other SPXFlow valves lines
  • NEMA 6 washdown rating
Burkert 8681 Control Unit
  • Contact free position sensor including (3) programmable feedback signals
  • Positions easily taught via intuitive push buttons or Autotune feature to ensure quick & easy set-up
  • Ultra-bright 360° visual LED position indication with adjustable red, yellow, & green color assignments provide clarity from all points of view and avoid confusion
  • Manual override and air throttle adjustable solenoids to assist start-up, maintenance, and troubleshooting
  • Up to IP69K washdown rating available (IP65/67 as standard) for high washdown environments
  • Built-in microcontroller tracks cycles and alerts operator when preventive maintenance is required
  • Simple and robust stainless steel adapter & chemically resistant polycarbonate head
  • Supplied by industry leading Burkert Fluid Controls

































Videos







Datasheets

D4PMO Series Double Seat Mix Proof Valves
D4 Series Valve Key

Success Stories

Valves in Action- D4PMO Mix Proof Valve HP Hood Dairy
Valves in Action- D4PMO Mix Proof Valve- Global Dairy Company in Wisconsin

Manuals

D4PMO Series Double Seat Mix Proof Valves
8681 Control Unit
8681 Control Unit Quickstart Guide
APV CU4 As-interface Control Unit
APV CU4 Direct Connect Control Unit

Press Releases

D4PMO Mix proof Valve Promises to be a WInner for US Dairy Applications
