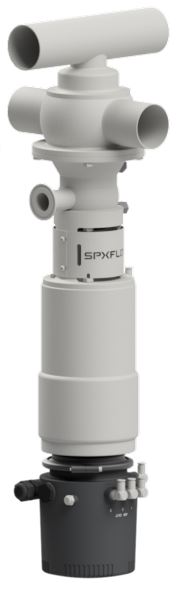

DP4 Series- Piggable Mix Proof Valve



Overview

The APV DP4 line of double seat mix proof valves enables product recovery or pigging through a mix proof valve body. By using a pig to recover product and reduce soil, we're able to save volume of cleaning fluid, as well as time during CIP.

High Value, Low Life Cycle Costs:

  • The use of pig for product recovery means less product loss and greater yield
  • Pig use descreases downtime arelated to sleaning and the costs associated with watewater and CIP fluid
  • Lower air consumption and air supply requirements
  • Leak drain with clamp connection for CIP fluid collection
  • Long housing ports ease manifold building


Reliable Performance

The DP4 is:
  • Based on the proven D4SL model
  • Features a long stroke for gentle product handling and low flow resistance
  • Balanced design of lower shafts helps prevent hydraulic blocking and enables flexible flow direction without slamming
  • No copmressed air needed for removal and servicing
  • Range of control units and bus communication for automated operation


Specifications

Sizes:
  • OD Tube: 1.5"- 4"
  • Body Configurations: DP44 & DP42
Product Wetted Parts: 1.4404/AISI 316L

Non Product Wetted Parts: AISI 304/1.4301

Seal Materials:

  • Standard EPDM
  • Optional: HNBR, FKM

Surface Finish:

  • Product Contact: 32 Ra
  • Non-Product Contact: Glass beaded

Required Air Pressure: 73 psi



Performance

Pressure Ratings:
  • Operating Pressure: 145 PSI (10 bar) maximum line pressure

Maximum Temperature:

  • EPDM & HNR: 275 F/135 C (intermittent)
  • FPM: 275 F/135 C

Sterilization Temperature:

  • EPDM & HNBR: 284 F/140 C

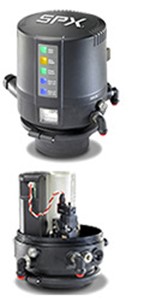

Control Units

CU4 & CU4+ Series
  • Automated control and position monitoring for reliable processing
  • Reduces compressed air and electrical connections
  • Helps reduced external solenoid valve cabinets
  • Accelerates valve response time
  • Innovative seat lift detection is fully integrated without need for external sensor wiring to provide additional position monitoring
  • Reliability and long service life- robust clamp connection, reinforced stainless steel air coupling threads to avoid air leakages, and water tight seals
  • Ease of operation- contains manual override solenoids and adjustment screw to throttle air flow to actuator to ensure optimal opening and closing
  • Clarity- clear and bright indication of valve position- 5 dioes in LED panel and convenient location
  • Standardization- same control top used on other SPXFlow valves lines
  • NEMA 6 washdown rating



































Manuals

DP4 Double Seat Piggable Valve
APV CU4 As-interface Control Unit
APV CU4 Direct Connect Control Unit

Brochures

Valve Key
