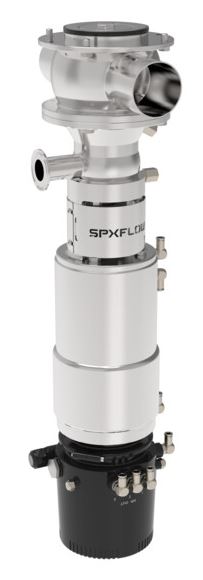

DT4- Tank Outlet Double Seat Mix Proof Valve



Overview

The DT4 tank outlet mix proof valve is used for the reliable separation between tank and servicing pipeline.
The DT4 is an extension to the D4 series mix proof family, which enables production flexilibilty, increased productivity, rapid ROI, and improved product quality.

High Value, Low Life Cycle Costs:

  • "All-in" standard features such as seat lift actuator and cross-port housing
  • Common seal kit for sizes 1.5"-3", reducing inventory cost
  • Lower air consumption and air supply requirements
  • Leak drain with clamp connection for CIP fluid collection


Reliable Performance

The DP4 is:
  • Based on the proven D4SL model
  • Tank side holding pressure of 73 psi
  • Features a long stroke for gentle product handling and low flow resistance
  • Balanced design of lower shafts helps prevent hydraulic blocking and enables flexible flow direction without slamming
  • No copmressed air needed for removal and servicing
  • Range of control units and bus communication for automated operation


Specifications

Sizes:
  • OD Tube: 1.5"- 4"

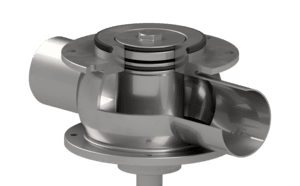

  • Body Configurations: T42
Product Wetted Parts: 1.4404/AISI 316L

Non Product Wetted Parts: AISI 304/1.4301

Seal Materials:

  • Standard EPDM
  • Optional: HNBR, FKM

Surface Finish:

  • Product Contact: 32 Ra
  • Non-Product Contact: Glass beaded

Required Air Pressure: 73 psi

Performance

Pressure Ratings:
  • Operating Pressure:
  • Process Side: 145 PSI (10 bar)
  • Tanks Side: >73 PSI

Maximum Temperature:

  • EPDM & HNR: 275 F/135 C (intermittent)
  • FPM: 275 F/135 C

Sterilization Temperature:

  • EPDM & HNBR: 284 F/140 C


Control Units

CU4 & CU4+ Series
  • Automated control and position monitoring for reliable processing
  • Reduces compressed air and electrical connections
  • Helps reduced external solenoid valve cabinets
  • Accelerates valve response time
  • Innovative seat lift detection is fully integrated without need for external sensor wiring to provide additional position monitoring
  • Reliability and long service life- robust clamp connection, reinforced stainless steel air coupling threads to avoid air leakages, and water tight seals
  • Ease of operation- contains manual override solenoids and adjustment screw to throttle air flow to actuator to ensure optimal opening and closing
  • Clarity- clear and bright indication of valve position- 5 dioes in LED panel and convenient location
  • Standardization- same control top used on other SPXFlow valves lines
  • NEMA 6 washdown rating
