W80 Series- Aseptic Flush Shut-Off, Divert, &  Tank Outlet Single Seat Valves



Overview

Packing all the features of a W60 series valve, the W80 series comes standard with a stem flush adapter to provide a steam barrier around the valve stem for aseptic applications.



Features

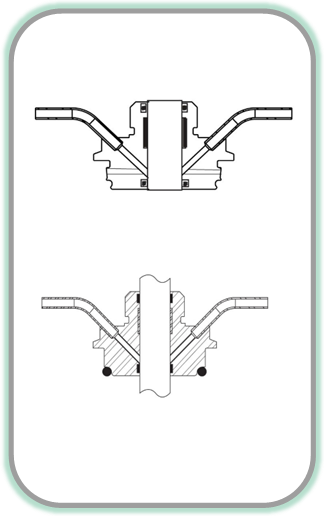

The W80 adapter is the go-to choice for aseptic applications. The adapter adds an outer perimeter seal to the valve body that is forward to the product zone the minimize crevices. The valve stem passes through the adapter and is sealed in the upper part of the adapter with another o-ring.
The adapter flush ports are drilled in between the  two o-rings to create the flush zone. And the W80A adapter adds steam trace to the adapter-to-valve body connection to create a fully aseptic solution.



Model Types

W81- Shut Off
W82- Divert
W83- Reverse Shut Off
W84- Tank Outlet
W84R- Reverse Tank Outlet
W85- Non-Slamming Divert
W88-  Throttling
W88R- Reverse Throttling
W882 Series- Aseptic Divert Throttling
W885 Series- Aseptic Non-Slamming Divert Throttling
W282/W285- Aspetic HTST





Videos







Datasheets

W60 Series Shut-off and Divert Single Seat Valves
W80 Series Aseptic Stem Flush Valves
Single Seat, Double Seat and Ball Valve Key

Flyers

Electropneumatic Positioner Upgrade
Construction - Mix Proof & Single Seat Valves - Product Features
Materials - Mix Proof & Single Seat Valves - Product Features
Single Seat Valve Actuators - Product Features


Manuals

W60 and W80 Series Valves
W68 and W88 Series Throttling/Pressure Control Valves
Control Tops for Waukesha Cherry-Burrell Valves and Switch-Only Options
APV CU4 As-interface Control Unit
APV CU4 Direct Connect Control Unit

Application Sheet

WCB Single Seat Valve Selection Guide
