Waukesha S200 Series Centrifugal Pumps

Overview

The S200 series takes Waukesha's standard 200 Series pump and incorporates a number of features making it the choice for pumping in pharmaceutical and biopharmaceutical fluid handling applications. All product contact components are machined from wrought less than 5% ferrite level, 316L SS and feature a 20 Ra product contact surface finish. Material heat numbers are available on all product contact components.

Features

S200 Series Pump Features include:

Designed to be Cleanable-in-Place (CIP)
High efficiency, low NPSHR design for a wide variety of applications.
One size mechanical seal for all S200 Series models; reducing parts inventory and cost (commercial seals available)
Integral impeller/shaft design for fewer parts, greater concentricity and easy maintenance
Close coupled pumps use NEMA JM Frame motors with larger diameter shafts and bearings (compared to C Frame motors)
Horizontal, vertical and 45° angle discharge port orientation available
Impellers, casing, and backplate are machined from wrought 316L SS
Stainless steel motor adapters
Reduced validation time
Documentation package
FDA approved fluroelastomers
USP Class VI elastomers
3-A approved and EHEDG certified

Options:

15 or 20 Ra., electropolish and passivation product contact surface finishes
Double mechanical seals
Casing drain
SS motors
USP Class VI elastomers
Stainless steel motors
SS Leg Kits
Ra Mapping
Certified and witness performance testing
Pedestal mounted pumps
Stainless steel bases and coupling guards

Theory of Operation

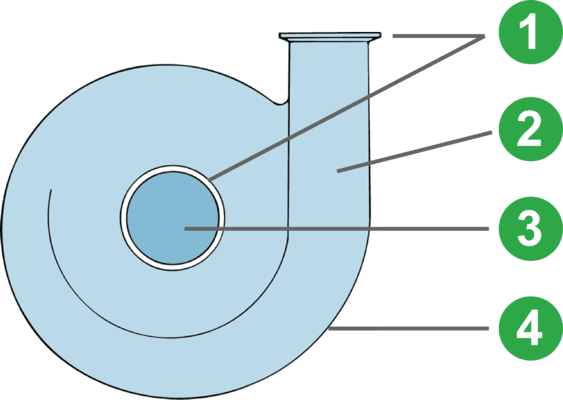

The Waukesha Volute Casing

(High Capacity Models are More Versatile)

The optimized Waukesha design performs more efficiently over a wide range of operating conditions. The efficient casing and port design maximize performance under low NPSH conditions.

1) Enlarged Ports

2) Investment Cast, or machined from solid (not stamped & welded)

3) Deeper, more efficient inlet “eye”

4) Volute casing (high capacity models), evens flow, minimizes turbulence

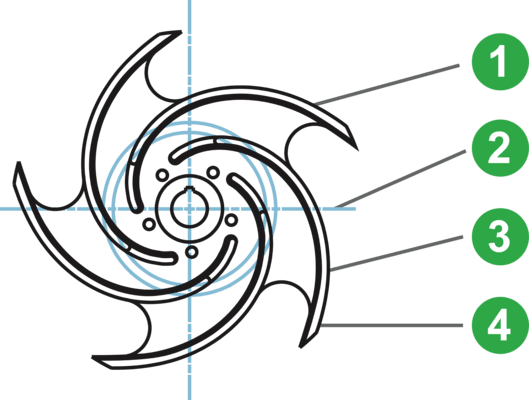

Waukesha’s Exclusive Impeller Design

The Waukesha impeller/shaft sleeve is a single, piece mounted rigidly on the motor shaft. Unlike C-flange mounted pumps, it stays aligned and performs with less vibration under the most rigorous operating conditions and maximizes seal life.

1) Exclusive one-piece impeller/shaft; eliminates impeller/hub wear

2) Top efficiency impeller

3) No clips or crevices to breed contaminants

4) Five blade impeller (4 blades on Model 2045)

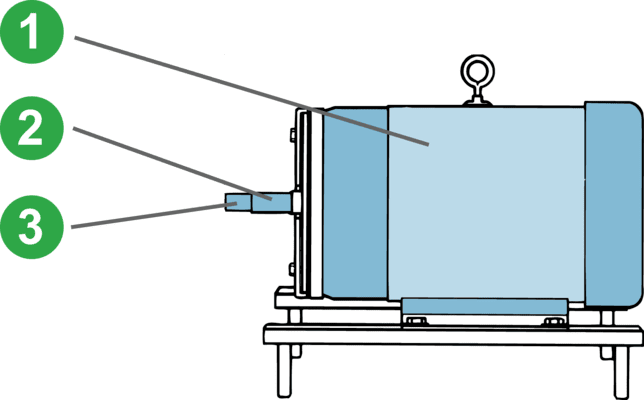

Offering Exclusive NEMA JM Frame Motors for both Sanitary and Industrial Applications

JM Frame Motors are specifically designed for centrifugal close coupled pumps and conform to NEMA, Hydraulic Institute and ANSI standards.

1) Heavier front bearing extends life

2) Extra large motor shaft increases rigidity, reduces vibration

3) Direct connecting impeller; no stub shaft required

Key Applications

Typical Applications for the S200 series include:

USP Purified Water
USP Water for Injection
Buffer Distribution and Transfer
Low viscosity product transfer
CIP Transfer

Specifications

Model	Inlet Size in (mm)	Outlet Size in (mm)	Max. Impeller Size in (mm)	Max. Capacity GPM (M3/HR)		Max. Head Feet (Meters)
Model	Inlet Size in (mm)	Outlet Size in (mm)	Max. Impeller Size in (mm)	1750 RPM	3500 RPM	1750 RPM	3500 RPM
S2045	1½" (38mm) 2" (51mm)	1½" (38mm)	4½" (114 mm)	97 GPM (22 m³/hr.)	190 GPM (43 m³/hr.)	22 ft. (7 m)	88 ft. (27 m)
S2065	2½" (64mm)	2" (51mm)	6½" (165 mm)	245 GPM (56 m³/hr.)	400 GPM (91 m³/hr.)	47 ft. (14 m)	190 ft. (58 m)
S2065LV	1½" (38mm) thru 2½" (64mm)	1½" (38mm)	6½" (165 mm)	100 GPM (23 m³/hr.)	200 GPM (45 m³/hr.)	44 ft. (13 m)	180 ft. (55 m)
S2065HV	3" (76mm)	2" (51mm)	6½" (165 mm)	370 GPM (84 m³/hr.)	500 GPM (114 m³/hr.)	50 ft. (15 m)	200 ft. (61 m)
S2075	3" (76mm)	1½" (38mm)	8¹¹/16" (218 mm)	125 GPM (28 m³/hr.)	300 GPM (68 m³/hr.)	80 ft. (24 m)	320 ft. (98 m)
S2085	3" (76mm) 4" (102mm)	2½" (64mm)	8¹¹/16" (218 mm)	480 GPM (109 m³/hr.)	840 GPM (191 m³/hr.)	85 ft. (26 m)	342 ft. (104 m)
S2085LV	2" (51mm)	1½" (38mm)	8½" (216 mm)	70 GPM (16 m³/hr.)	145 GPM (33 m³/hr.)	81 ft. (25 m)	330 ft. (101 m)
S2092	3" (76mm)	2" (51mm)	9¼" (216 mm)	390 GPM (88 m³/hr.)	700 GPM (159 m³/hr.)	92 ft. (28 m)	360 ft. (109 m)

Videos

Resources

S200 Series Pump Brochure

S200 Series Pump Datasheet

S200 Series Product Highlights

S200 Series Pump Manual
