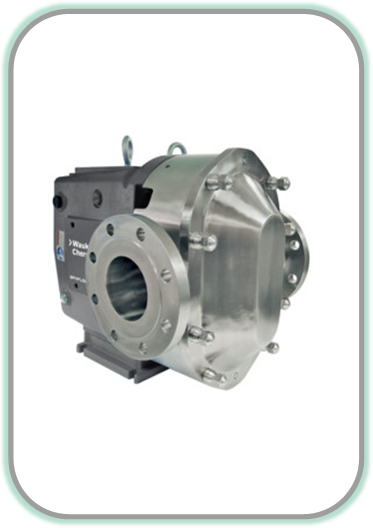

Theory of Operation

The Waukesha Universal Series of pumps use the time-tested circumferential-piston operating principle. The arc-shaped "pistons" (rotor wings) travel in annular-shaped cylinders machined in the pump body; the resulting long sealing path reduces slippage and produces a smooth flow of product without destructive pulses or pressure peaks and without valves or complex parts.

Because the rotors are made of Waukesha non-galling Alloy 88, the rotors can be run with exceptionally close clearance with the 316L stainless steel fluid head, without having to fear galling or seizing should inadvertent pressure surges cause contact. The close clearances combined with the rotor geometry, which gives a long sealing path between the pump inlet and outlet, means low slip operation even with low viscosity fluids. This means you get high efficiency, good priming ability, metering capability, and flow control everytime you use a Waukesha Universal Pump.

Additionally, because of the large fluid cavities in the rotors, plus the large, easy entry anti-cavitation ports, the Universal Series of pumps allow efficient pumping of high viscosity fluids, slurries, or even liquids with large chunks or particles.

Finally, because the Waukesha Cherry-Burrell design has no bearings in the fluid being pumped, no sliding or rolling contact and no rotor-to-rotor contact, we get excellent service with every Universal Positive Displacement pump even under sever or abrasive conditions.



Key Applications

  •  ​Acetone​
  • Acids/Bases​
  • Additives​ Adhesives​
  • Alcohols​
  • Black Liquor Soap​
  • Brine​
  • Caustic (Sodium Hydroxide)​
  • Cell Broth​
  • Chemical Salts​
  • Coating Pigments​
  • Collagen​
  • Cooked Starch​
  • Detergent Gel​
  • Detergent Slurry​
  • Dyes​
  • Emulsions​
  • GCC Fillers​
  • Glycol (Ethylene Glycol, Ethylene Alcohol)​
  • Greases​
  • Inks​
  • Inorganic Compounds​
  • Isocyanate​
  • Kaolin​
  • Organic Compounds​
  • PCC Fillers​
  • Polymers​
  • Polyvinyl Acetate (PVAC)​
  • Resins​
  • Retention Aids​
  • Sorbitol​
  • Starch​
  • Starch Adhesives​
  • Starch Slurry​
  • TI02 Fillers​
  • Wax

Specifications

MODEL

DISPLACEMENT
PER REVOLUTION

NOMINAL
CAPACITY TO

MAXIMUM
PRESSURE

006-U2 ND 0.0082 Gal. (0.031 Liter) 8 GPM (1.8 m³/hr.)

300 PSI (20.7 bar)

015-U2 ND 0.0142 Gal. (0.054 Liter) 11 GPM (2.5 m³/hr.)

250 PSI (17.2 bar)

018-U2 ND 0.029 Gal. (0.110 Liter) 20 GPM (4.5 m³/hr.)

200 PSI (13.8 bar)

030-U2 ND 0.060 Gal. (0.227 Liter) 36 GPM (8.2 m³/hr.)

250 PSI (17.2 bar)

040-U2 ND

0.076 Gal. (0.288 Liter)

45 GPM (10.2 m³/hr.)

150 PSI (10.3 bar)

045-U2 ND 0.098 Gal. (0.371 Liter) 58 GPM (13.2 m³/hr.)

450 PSI (31.0 bar)

060-U2 ND 0.153 Gal. (0.579 Liter) 90 GPM (20.4 m³/hr.)

300 PSI (20.7 bar)

130-U2 ND 0.253 Gal. (0.958 Liter) 150 GPM (34.1 m³/hr.)

200 PSI (13.8 bar)

180-U2 ND 0.380 Gal. (1.438 Liter) 230 GPM (52.2 m³/hr.)

450 PSI (31.0 bar)

210-U2 ND 0.502 Gal. (1.900 Liter) 300 GPM (68.1 m³/hr.)

500 PSI (34.5 bar)

213-U2 ND 0.502 Gal. (1.900 Liter) 300 GPM (68.1 m³/hr.)

500 PSI (34.5 bar)

220-U2 ND 0.521 Gal. (1.972 Liter) 310 GPM (70.4 m³/hr.)

300 PSI (20.7 bar)

320-U2 ND 0.752 Gal. (2.847 Liter) 450 GPM (102 m³/hr.)

300 PSI (20.7 bar)

370-U2 ND 1.099 gal. (4.160 Liter) 660 GPM (150 m³/hr.) 200 PSI (13.8 bar)



Options

Ports

Standard: 150lb flanges standard (with some exceptions, contact factory for details)

  • Male NPT available
  • S-line available
  • Contact factory for available rectangular flange inlets.
  • 300# flange available
  • Schedule 5 S-line available
  • Port extensions available

Rotors

Standard: Twin Wing - Standard

Rotor clearance

Standard: up to 180°F (82°C)

  • Hot clearance rotors option for applications up to 300°F (149°C).
  • Other special clearances available

O-Rings

Standard: Buna-N

Options:

  • Fluoroelastomer (FKM)
  • Fluoroelastomer (FKM) - Class 6
  • EPDM
  • EPDM - Class 6
  • Silicone
  • Perfluoroelastomer (FFKM)
  • Buna-N - Metal Detectable
  • FKM - Metal Detectable
  • EPDM - Metal Detectable

Cover & Gearcase

Standard: Steel-IT Painted cast iron gearcase

Options:

  • Stainless steel gearcase
  • Waukesha Blue paint
  • Epoxy white paint
  • 316L stainless steel shafts
  • Lower shaft position
  • Bearing Isolators
  • Pedestal shims for side mounted pumps. Left hand shaft position standard.
  • Right hand shaft position on side mounted gearcase

Tru-Fit®

Close coupled Tru-Fit® pump mounted on stainless steel base with stainless steel adaptors standard.

Features:

  • No shaft alignment necessary. No coupling guard required.
  • Special base design enhances cleanability.
  • Reduces overall length of complete unit by an average of 20-25%.
  • Average of 20-25 gear ratios available per horsepower.
  • Separate oil sump for gear reducer and timing gears.

Options:

  • 304 SS polished plate base.
  • NEMA or IEC frames available. Right angle reducer also available for
    additional space savings.
  • 1/2 through 60 horsepower drive options available.
  • Horizontal or vertical porting.
