Waukesha Votator LD Series Scraped Surface Heat Exchangers



Overview

Based on a multi-flexible platform, the Votator® LD scraped surface heat exchanger is designed to operate under harsh conditions where other heat exchanger technologies can fail or cannot sustain operational efficiency over a longer period.
Designed to meet 3-A sanitary requirements the Votator® LD is used to heat or cool medium and high viscous products with or without particles, the Votator® LD scraped surface heat exchanger comes in two basic configurations:

Horizontal

  • Rigid stainless steel frame
  • Easily extendable up to 6 cylinders

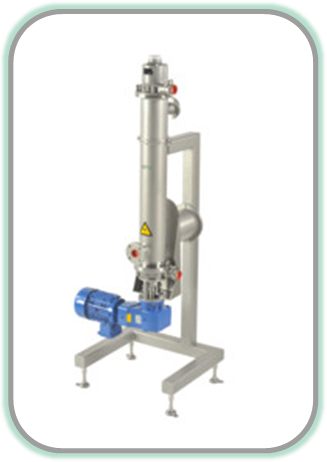

Vertical

  • Rotatable cylinder for easy maintenance
  • Low space requirements

Applications

  • Heating
  • Cooling
  • Crystallization
  • Pasteurization
  • Sterilization

Twelve good reasons to buy the Votator® LD scraped surface heat exchanger:

  • Customization, multiple options
  • Easily extendable
  • Vertical & horizontal configurations
  • Short CIP/SIP time
  • Easy maintenance
  • Aseptic production option
  • Small footprint
  • Low downtime
  • Fast delivery and installation
  • Use of widely available SPX FLOW standard parts
  • Support by skilled and experienced engineers
  • On site SPX FLOW representatives

Specifications

The Votator LD scraped surface heat exchanger can be customized depending on the product, production volume, hygienic requirements, space constraints and the heating/cooling medium.
Standard high-flexibility medium viscosity unit
  • 20 bar (290 psi) product pressure
  • Product wetted parts in 1,4404 / AISI316L
  • Rotor diameter: 99mm (4")
  • Scraper blades PEEK/PTFE
  • Motor 50Hz 400V motor: 3kW (4 hp) / 278rpm/103 Nm (76ft*lb) or Motor 60Hz 460V motor: 2,2kW (3 hp) / 213rpm/99 Nm (73ft*lb)
  • Two single mechanical shaft seals:
    • For high hygienic demands
    • Increased run-time and shorter CIP-time - higher production output
    • In cartridge design for fast and easy maintenance
    • With widely available SIC/SIC sealing surfaces from the SPX FLOW shelf
    • EPDM gaskets
Customization options
  • Product wetted parts in duplex steel (1.4462 / SAF2205)
    • 25 bar option
    • Acidic products
    • Abrasive products
  • Rotor diameter: 112 mm (4.4) for:
    • better heat transfer
    • shorter contact time with heating surface - less heat exposure to product
    • shorter holding/heating time - less exposure to product
    • less holding volume - less waste product
  • Rotor diameter: 72 mm (2.84) for:
    • larger particles
    • less pressure drop - smaller pumps
  • Scraper blade material: reinforced PEEK for higher viscous products
  • 50 Hz / 400V motor: 2.2 kW (3,0 hp) / 176 rpm / 119 Nm (88 ft*lb), 4 kW (5.4 hp) / 142 rpm / 270 Nm (199 ft*lb)
  • 60 Hz / 460V motor: 3 kW (4 hp) / 328 rpm / 87 Nm ( 64 ft*lb), 3.7 kW (5 hp) / 181 rpm / 195 Nm (144 ft*lb)
  • Heatable rotor
    • to avoid product build-up when cooling crystallizing products
    • extendable later
  • Two flushable double mechanical seals
    • for aseptic design (use with i.e. aseptic fluids or steam)
    • for use with solidifying or abrasive product particles i.e. sugar (with water flush)
    • single mechanical seals can easily be upgraded
  • Clip-on insulation
    • for easy mounting/dismounting
  • Gasket material: FPM


Key Applications

Food Products
  • Heating and cooling cheese sauce
  • Pudding
  • Caramel
  • Deboned meat
  • Pet food
  • Fruit products
  • Soups
  • Sauces
  • Dressings
  • Syrups
  • Nut Butters
  • Gelatin
  • Margarine
Personal Care and Industrial Products
  • Shampoos & Conditioners
  • Deodorants
  • Paraffin
  • Caulk
  • Greases
