Waukesha Votator Blade Overview



6" Blades

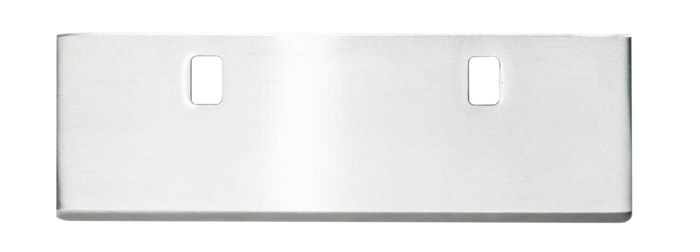

Material: 410 Stainless Steel
Part Number: LL900127
Cost: $$
Temperature Limitations: None
Product Applications: All processes High Viscosity (meat/fondant/ice crystallization)
Comments:
-Hard metal
-Moderate corrosion resistance
-Sharpening cost high
-Possible tube wear
Material: 17-7 Stainless Steel
Part Number: LL900124
Cost: $$$$
Temperature Limitations: None
Product Applications: All processes High Viscosity (meat/fondant)
Comments:
- Soft metal
- Corrosion resistance
- Sharpening cost high
- Possible tube wear

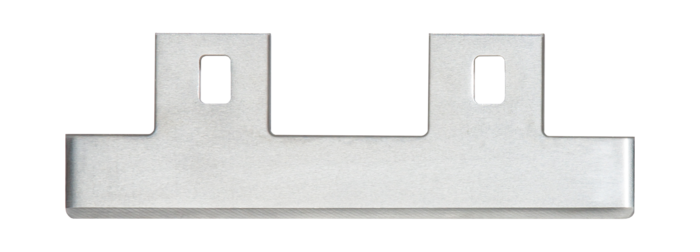

Material: 410 Stainless Steel Cutaway Style
Part Number: LL125801
Cost: $$$$
Temperature Limitations: None
Product Applications: All processes High Viscosity (meat/fondant)
Comments:
- Hard metal
- Moderate corrosion resistance
- Sharpening cost high
- Reduced power consumption and product accumulation

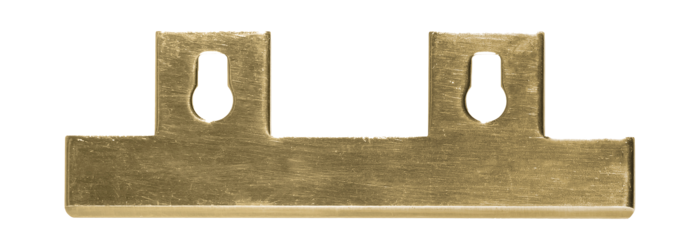

Material: Brass Cutaway Style
Part Number: LL918089
Cost: $$$
Temperature Limitations: None
Product Applications: Pet Food and Inedible Processes
Comments:
- Soft metal with reduced power consumption and product accumulation

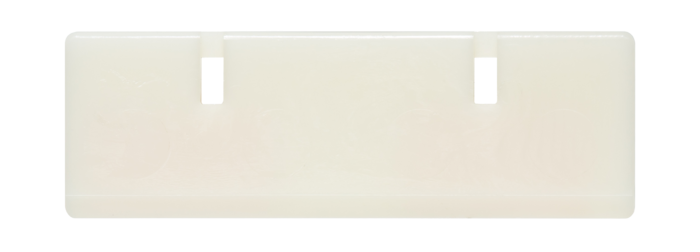

Material: Celcon
Part Number: LL900129
Cost: $
Temperature Limitations: 160° F (71° C)
Product Applications: Low viscosity, fats and oils cooling (margarine/shortening)
Comments:
- Molded plastic
- Low strength values

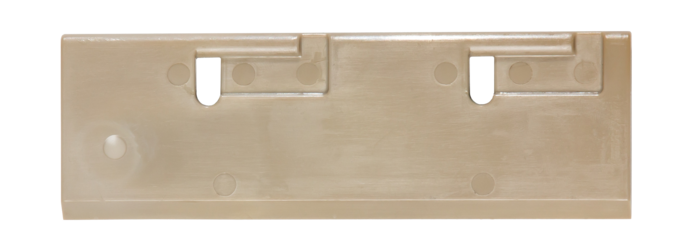

Material: PEEK
Part Number: LL118683
Cost: $$
Temperature Limitations: 320°F (177°C)
Product Applications: Medium to high viscosity, most products
Comments:
- Molded plastic, high tensile strength and elongation

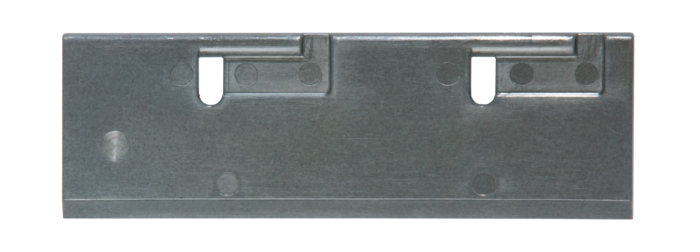

Material: MD PEEK
Part Number: LL118683MD
Cost: $$$
Temperature Limitations: 320°F (177°C)
Product Applications: Medium to high viscosity, most products
Comments:
- Molded plastic, high tensile strength and elongation
- Metal detectable molded plastic

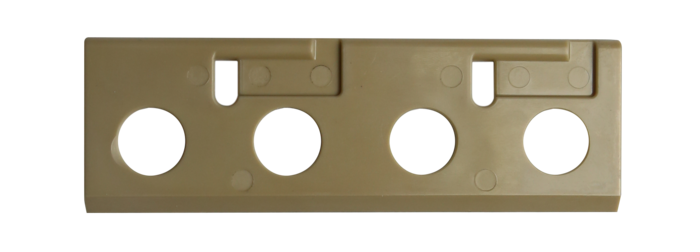

Material: PEEK with Locking Holes
Part Number: LL121856
Cost: $$$
Temperature Limitations: 320°F (177°C)
Product Applications: High viscosity, gelatin cooling
Comments:
- Relief holes provide lower tip pressure and current amperage
- Molded plastic, high tensile strength and elongation

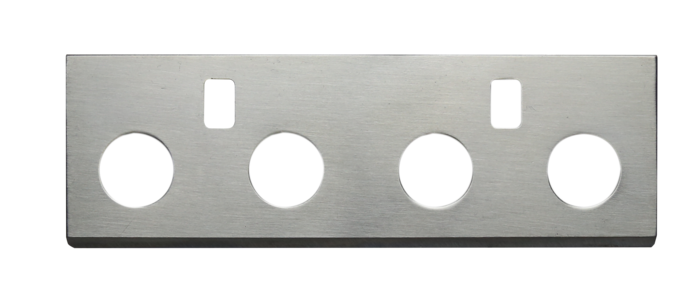

Material: 410 Stainless Steel with Locking Holes
Part Number: 137467+
Cost: $$$
Temperature Limitations: None
Product Applications: High viscosity, caulk and plastics cooling
Comments:
- Hard metal
- Relief holes provide lower tip pressure and current amperage
- High sharpening cost

7.5" Blades

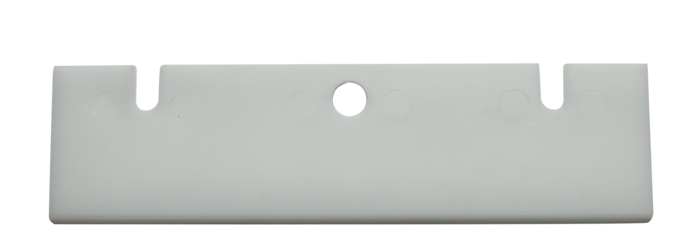

Material: Celcon
Part Number: LL900748
Cost: $$
Temperature Limitations: 160° F (71° C)
Product Applications: Low to medium viscosity, fats and oils cooling
Comments:
- Machined from stock
- Low strength value

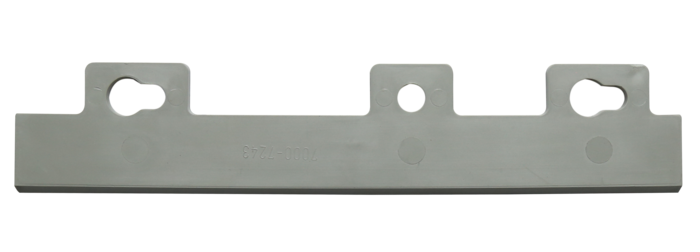

Material: LD PEEK/PTFE
Part Number: K7000-7243
Cost: $$
Temperature Limitations: 302° F (150° C)
Product Applications: Low to medium viscosity, sauces, purees, and dressings
Comments:
- Molded plastic
- Low friction values

13.75" & 24" Blades

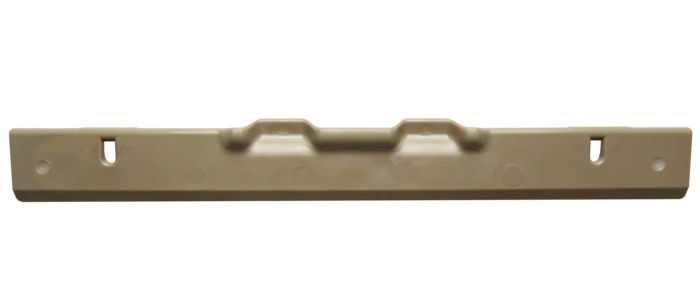

Material: 4x120 PEEK
Part Number: LL119712
Cost: $$
Temperature Limitations: 320° F (177° C)
Product Applications: Medium viscosity, sauces, purees and dressings
Comments:
- Molded plastic, high tensile strength and elongation
- Special “knuckles” for blade positioning

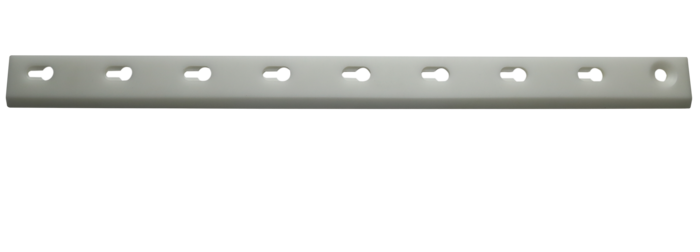

Material: Votator II Thermutator Delrin
Part Numbers:
- 128675+
- 128675M1
- 128675M2
Cost: $$$
Temperature Limitations: 160° F (71° C)
Product Applications: Medium viscosity, heat sensitive products or fouling characteristics
Comments:
- 5.25" (133mm) shaft design
- Low strength values
- Low friction properties
- Machined blade

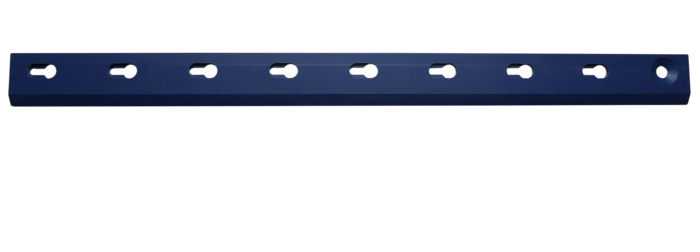

Material: Votator II Thermutator MD
Part Numbers:
- 135144MD
- 135144MD1
- 135144MD2
Cost: $$$$$
Temperature Limitations: 160° F (71° C)
Product Applications: Medium viscosity, heat sensitive products or fouling characteristics
Comments:
- 5.25" (133mm) shaft design
- Low strength values
- Low friction properties
- Metal detectable
- Machined blade

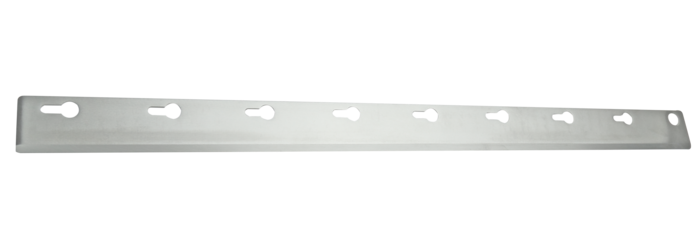

Material: Votator II Thermutator 410 Stainless Steel
Part Numbers:
- LL926752
- LL926752M1
- LL926752M2
- 133029+
Cost: $$$$$
Temperature Limitations: None
Product Applications: Medium to high viscosity, heat sensitive and abrasive products, licorice, cheese sauce, pudding, and banana puree
Comments:
- Hard metal
- 5.25" (133mm) shaft design
- Corrosion resistant
- High sharpening cost
