FDA Hose

Summary

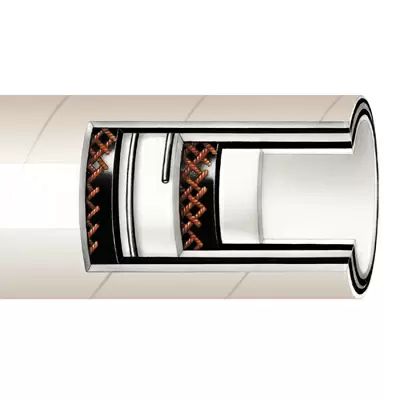

Tube: Smooth white nitrile

Cover: White nitrile rubber (abrasion & oil resistant)

Reinforcement: Two polyester spirls with dual helix wire

Temperature: -40 F - 180 F



Dimensions

Part Number
Hose ID Inch
Hose OD Inch
Bend Radius Inch
Max. Working Pressure @70°F PSIG
Vacuum Rating @70°F in. Hg.
Weight per FT
08RFFDA
0.50
0.97
1.50
200
FULL
0.35
12RFFDA
0.75
1.27
2.50
200
FULL
0.48
16RFFDA
1.00
1.56
3.00
200
FULL
0.75
24RFFDA
1.50
2.13
6.00
150
FULL
1.03
32RFFDA
2.00
2.63
7.00
150
FULL
1.44
40RFFDA
2.50
3.17
8.00
150
FULL
1.92
48RFFDA
3.00
3.69
9.00
150
FULL
2.43
64RFFDA
4.00
4.81
12.00
150
FULL
3.65



Additional Specifications

Features

Applications

Fittings

Hose Certifications

  • Ultra Smooth inner bore
  • Full vacuum
  • Abrasion Resistant cover
  • WIll not impart taste or order
  • Static grounding available
  •
  • Oily food applications
  • Potable Water
  • Sanitary Suction & Discharge
  • Food and beverage transfer
  • Dairy
  • CIP pharmaceutical applications
  • Broad variety of fittings in 316L SS
  • PTFE Encapsulated Ends
  • Kynar/PVDF & other nonmetallic materials
  • Electropolished Fittings Available
  • High alloy fittings available upon request
  • 3-A Sanitary standards 62-02
  • FDA 21 CFR 177.2600
  • USDA
  • Conforms to Grade A PMO Criteria
