Pilot Homogenizers & Scale-Up

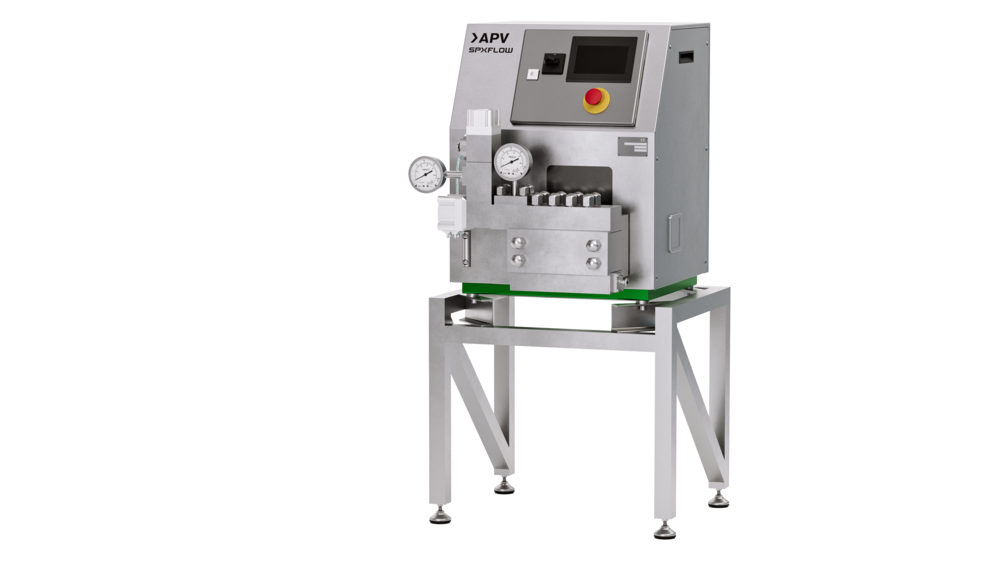

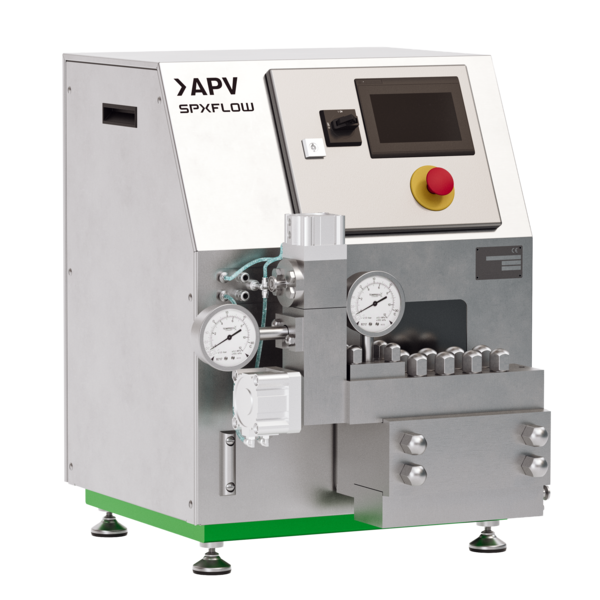

The APV Pilot 4T sits between bench development and full production, giving processors a practical way to screen recipes, pressure ranges, and process behavior before committing to plant-scale equipment.
Where this fits in the homogenizer conversation.
Pilot 4T, batch or continuous operation, pump/single-stage/two-stage configurations, 20-600 L/h depending on configuration, and scale-up planning.
Product and result
Start with the product, current process issue, target particle/droplet behavior, texture, stability, temperature window, viscosity, and cleaning method.
Pressure and capacity together
Pressure and flow must be reviewed as a pair. A model's maximum capacity and maximum pressure should not be treated as simultaneous unless the current APV data supports that operating point.
Parts, controls, and service access
Liquid-end design, valve geometry, materials, controls, feed conditions, and access for maintenance all affect long-term operation.
Pilot homogenizers are where test data starts becoming process data.
The useful questions are batch size, continuous vs. recirculation testing, pressure range, heat rise, sample handling, cleaning, and whether the trial can scale to production.
Lab homogenizer troubleshooting guide
Useful context for small-scale testing, pressure behavior, and operating issues before scale-up.
Selection is technical before it is transactional.
A classic APV Gaulin/Rannie-style homogenizer is a positive-displacement plunger pump with a homogenizing valve. The pump develops pressure; the result is created through the valve gap and depends on product behavior, stage count, pressure, temperature, feed quality, and valve configuration.
Useful related resources.
Need help narrowing the right path?
Send product, target result, temperature, viscosity, flow rate, pressure range, sanitation requirements, current equipment, and whether this is lab, pilot, production, parts, or service.
