Shear Pump vs. Colloid Mill: which high-shear step fits your process?
The Waukesha Cherry-Burrell SP4 and Waukesha Cherry-Burrell Colloid Mill both support texture, dispersion, and emulsion work, but they solve different process problems. The SP4 is a configurable inline shear and mixing device. The colloid mill is a close-clearance milling/emulsifying head for controlled, uniform dispersions and stable emulsions.
Start with the result you need.
If the goal is a tight, repeatable clearance for uniform emulsions or dispersions, start with the Waukesha Colloid Mill. If the goal is a configurable inline shear step with interchangeable rotor/stator combinations for blending, reconstitution, dispersion, polishing, or texture work, start with the SP4. In both cases, the feed system matters as much as the shear device.
Stable emulsions and uniform dispersions

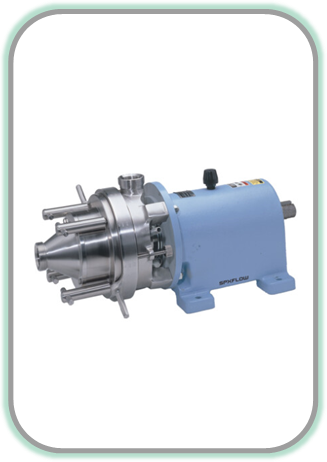

The colloid mill uses a serrated rotating cone and serrated conical stator with calibrated clearance control from 0.010 to 0.240 inches in 0.001-inch increments.
Configurable inline shear/mixing
The SP4 uses interchangeable rotor/stator combinations, speed, flow rate, and pass count to tune blending, dispersing, reconstituting, polishing, texturizing, and coarse reduction work.
SP4 vs. Colloid Mill comparison.
Neither answer is automatic. Product viscosity, solids, temperature, pressure, cleaning method, and target texture all matter.
| Question | SP4 Shear Pump / Inline Shear Device | Waukesha Cherry-Burrell Colloid Mill |
|---|---|---|
| Primary role | Inline shear, dispersion, mixing, polishing, texturizing, reconstitution, and emulsion support. | Controlled milling/emulsifying for highly sheared uniform dispersions and stable emulsions. |
| How shear is created | Product passes through defined rotor/stator zones; head combination, speed, and residence time affect the result. | Serrated rotating cone works against a serrated conical stator; adjustable clearance controls milling intensity. |
| Feed approach | Typically integrated with a supply pump so flow and pressure are managed independently of the shear step. | Must be fed by a pump. The manual recommends a Waukesha Cherry-Burrell positive displacement pump. |
| Typical process fit | Texture development, smoothing, powder wet-out, liquid/liquid emulsions, solids dispersion, sauces, slurries, brines, and recirculated tank work. | Salad dressings, mayonnaise, liquid egg homogenization, tomato-based sauces, lotions, creams, and products needing uniform globules of moderate fineness. |
| Capacity | Nominal capacity to 30 GPM. | 6.7 to 33.3 GPM / 25 to 126 L/min. |
| Temperature | Nominal temperature to 300°F. | Nominal temperature to 200°F / 93°C. |
| Adjustment | Rotor/stator selection, speed, feed rate, recirculation, and number of passes. | Calibrated clearance ring, adjustable from 0.010 to 0.240 inches in 0.001-inch increments. |
The supply pump is part of the process.
Do not size either device in isolation. The supply pump controls how product reaches the shear or milling head, which affects residence time, pressure, temperature rise, and consistency.
Waukesha PD / rotary lobe
The default starting point for many sanitary duties where controlled feed, viscosity, and pressure point toward positive-displacement transfer into the shear device.
Twin screw review
Worth discussing when viscosity range, entrained air, particulates, low-NPSH conditions, gentle transfer, or product-and-CIP duty matter. Specific model fit should be confirmed with Triplex.
Pressure discipline
Both devices have a 150 PSI limit. Feed pump selection must account for viscosity, clearance, flow target, and pressure across the process head.
Where each conversation usually starts.
When we would lean SP4
- Inline shear without necessarily needing close-clearance milling.
- Blending, reconstituting powders, dispersing, polishing, or texture development.
- Marinades, brines, seasoning slurries, gums/stabilizers, sauces, soups, and food pastes.
- Trial-based tuning with head combination, speed, feed rate, and recirculation.
When we would lean Colloid Mill
- Stable emulsions and uniform dispersions are the main target.
- Repeatable, calibrated rotor/stator clearance is important.
- Dressings, mayonnaise, tomato-based sauces, liquid egg, lotions, creams, and similar products.
- The process can be pump-fed within the 150 PSI feed-pressure limit.
What not to assume without a trial.
Do not promise exact particle size, injector-plug elimination, APV-style homogenization, emulsifier reduction, or final texture without product testing. Seal flush, cleaning, pressure, temperature, and feed arrangement should be reviewed before final selection.
Send the product and the target result.
Triplex can help compare SP4, colloid mill, homogenizer, and feed pump options before you lock into a model number.
