Overview

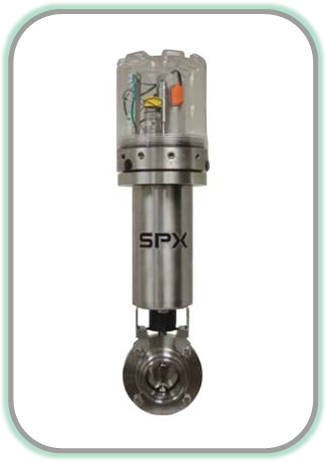

The 200 series butterfly is Waukesha's flagship 1/4 turn valve. Easy to install and maintain, the 200 series is available with both manual and pneumatic actuation so you can dial it in for your sanitary process application.

Features

• All stainless construction: forged, precision-machined body and eletropolished disc

• Sanitary finish

• FDA-approved materials: EPDM, FKM, Silicone

• Complete line of manual and air actuators with control top options

• Symmetric, metal-to-metal body interface will no overcompress body gasket

• Visual indication of open/closed position

• Open bottom stem seal for positive leak detection

• S-Line, buttweld, and intermediate flange connections available

Datasheets

200 Series Butterfly Valves

Single Seat, Double Seat, and Ball valve Key

Quarter Turn Actuator Features

Manuals

200 Series Butterfly Valve

APV CU4 AS-interface Control Unit

APV CU4 Direct Connect Control Unit
