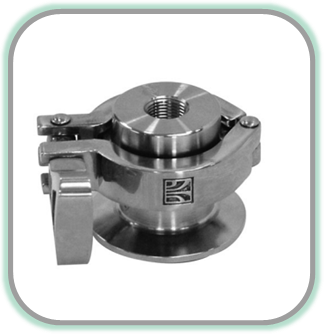

62B Series- Air Blow Check Valves



Overview

62B Air Blow Check Valves are plug style valves where air pressure pushes the bonded plug away from the seat to blow down sanitary process lines after cleaning.

Features

  • 3A compliant when used with incorporated filter disc
  • 316L SS product contact surfaces
  • Viton elastomers
  • Inlcudes 40 Micron air filter disc
  • Up to 1600 cfh air flow
  • Available w/ NPT & Hosebarb air connections
  • Available w/ Tri Clamp, Male I Line, and Q Line Process Connections



Applications

  • Spring-loaded plugstyle check for air-entry into product pipelines
  • Evacuation of process pipelines for product recovery and/or drainage
  • Air agitation of product in pipelines, tanks, and other equipment
  • Air drying of process lines and equipment for corrosion resistance/formation of protective oxide films





Datasheets

Waukesha Manual Valve Overview
