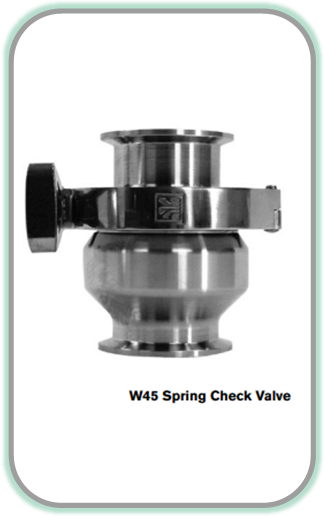

W45/W45 HMP Spring Disc Check Valves



Overview

W45 Spring check valves are used to stop or "check" reverse flow in a pipeline. The W45 series of check valves use a disc or "wafer" where product flow pushes the valve disc away from the seat. In the abscence of forward flow, the disc holds closed against the seat. Back flow pressure also pushes the disc into the closed position

Features

  • Positive o-ring seal and metal-to-metal seating for robust, "soft seat" closure
  • Limited Stroke to prevent over-compression: improves spring life, reduces stem wear, improves cleanability
  • CIP capabile, 3-A design in 1"-4"
  • Machined from bar 316LSS body w/ 32 Ra or better polish

Options

  • Sizes- 1"-4" TC or Buttweld
  • EPDM or FKM gaskets
  • Tri-Ring Seal for high velocity or sticky/adhesive products
  • Eccentric Body (W45HMP) for horizontal installations

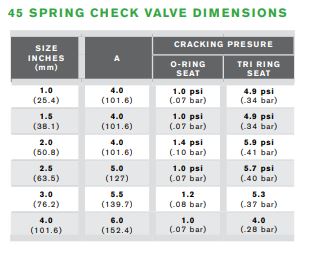

Datasheets

Waukesha Manual Valve Overview
