WR60/WR80 Series Adjustable Pressure Relief Valve



Overview

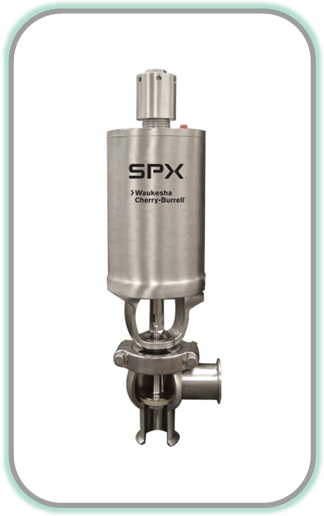

The WR60 / WR80 adjustable pressure relief valve or pressure safety valve allows users to set the desired relief cracking pressure right at the valve by simply turning the adjustment screw.  Installing a pressure-relief valve can protect pumps in a process line by allowing the pump to discharge pressure if it exceeds the cracking pressure set on the valve.

Features

The Waukesha WR60 adjustable pressure relief valve provide external protection to your sanitary positive displacement pump. If the pump discharge pressure exceeds the set cracking pressure, the valve will open to a relief path.
The adjustable-spring actuator allows users to set the desired relief cracking pressure at the valve simply by turning the adjustment screw. And because the valve is air actuated, it can be bypassed completey during CIP without having to over-pressurize the valve or flow path.
  • Utilizes standard W60 single seat valve component,s machined-from bar bodies, and modular design for low cost of ownership.
  • Adjustable-spring, maintenance free actuator allows easy setting of desired relief cracking pressure.
  • Pneumatic actuator allows simple pump bypass during CIP
  • Multiple body styles provide minimal dead-leg relief configurations for efficient cleaning
  • WCB control tops available on valve for feedback and automation
  • W80 aseptic stem flush adapters available



Specifications

Sizes:
Available in 1” to 4” (25mm – 152mm) OD sizes.
Materials:
Product Wetted: ASTM 316L (UNS-S31603); (DIN-1.4404)
Non-Product: ASTM 304 (UNS-S30400); (DIN-1.4301)
Seat Material: Tef Flow™ (Standard)
Elastomers:
  • FKM (Standard)
  • EPDM (Option)
  • FFKM (Option)
Finish: < 32Ra (<0.8 µm) Other finishes available upon request





Models & Functions

WR61 with Air to raise actuator for simple relief and bypass
WR63 with Air to lower actuator for minimal dead leg applications




Datasheets

W60 Series Shut-off and Divert Single Seat Valves
WR60/WR80 Pressure Relief Valves


Flyers

Pressure Relief Valve Product Highlights
Construction - Mix Proof & Single Seat Valves - Product Features
Materials - Mix Proof & Single Seat Valves - Product Features
Single Seat Valve Actuators - Product Features
Control Top Cover Upgrade and NEMA 6 Upgrade Option



Manuals

W60 and W80 Series Valves
Control Tops for Waukesha Cherry-Burrell Valves and Switch-Only Options
APV CU4 As-interface Control Unit
APV CU4 Direct Connect Control Unit

Application Sheet

Single Seat Selection and Application Guide

Success Stories

WCB Sanitary Single Seat Valves Help Streamline Personal Care Process


 WR60/WR80 Series Adjustable Pressure Relief Valve



Overview

The WR60 / WR80 adjustable pressure relief valve or pressure safety valve allows users to set the desired relief cracking pressure right at the valve by simply turning the adjustment screw.  Installing a pressure-relief valve can protect pumps in a process line by allowing the pump to discharge pressure if it exceeds the cracking pressure set on the valve.

Features

The Waukesha WR60 adjustable pressure relief valve provide external protection to your sanitary positive displacement pump. If the pump discharge pressure exceeds the set cracking pressure, the valve will open to a relief path.
The adjustable-spring actuator allows users to set the desired relief cracking pressure at the valve simply by turning the adjustment screw. And because the valve is air actuated, it can be bypassed completey during CIP without having to over-pressurize the valve or flow path.
  • Utilizes standard W60 single seat valve component,s machined-from bar bodies, and modular design for low cost of ownership.
  • Adjustable-spring, maintenance free actuator allows easy setting of desired relief cracking pressure.
  • Pneumatic actuator allows simple pump bypass during CIP
  • Multiple body styles provide minimal dead-leg relief configurations for efficient cleaning
  • WCB control tops available on valve for feedback and automation
  • W80 aseptic stem flush adapters available



Specifications

Sizes:
Available in 1” to 4” (25mm – 152mm) OD sizes.
Materials:
Product Wetted: ASTM 316L (UNS-S31603); (DIN-1.4404)
Non-Product: ASTM 304 (UNS-S30400); (DIN-1.4301)
Seat Material: Tef Flow™ (Standard)
Elastomers:
  • FKM (Standard)
  • EPDM (Option)
  • FFKM (Option)
Finish: < 32Ra (<0.8 µm) Other finishes available upon request





Models & Functions

WR61 with Air to raise actuator for simple relief and bypass
WR63 with Air to lower actuator for minimal dead leg applications




Datasheets

W60 Series Shut-off and Divert Single Seat Valves
WR60/WR80 Pressure Relief Valves


Flyers

Pressure Relief Valve Product Highlights
Construction - Mix Proof & Single Seat Valves - Product Features
Materials - Mix Proof & Single Seat Valves - Product Features
Single Seat Valve Actuators - Product Features
Control Top Cover Upgrade and NEMA 6 Upgrade Option



Manuals

W60 and W80 Series Valves
Control Tops for Waukesha Cherry-Burrell Valves and Switch-Only Options
APV CU4 As-interface Control Unit
APV CU4 Direct Connect Control Unit

Application Sheet

Single Seat Selection and Application Guide

Success Stories

WCB Sanitary Single Seat Valves Help Streamline Personal Care Process
