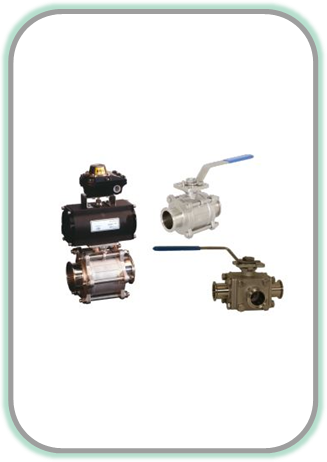

Dixon BV2C 2-Way & 3 Way Ball Valves



Overview

The full ported, straight-through design of ball valves frees the flow path from obstructions. Featuring low pressure drop and simple operation, Dixon BV2 series valves are efficient and safe for production and cleaning processes in the food, beverage, dairy, industrial, and chemical industries.

Features

  • Live-Loaded stem packing
  • Precision stainless steel balls reduce torque and friction losesses
  • Integral ISO 5211 mounting pad
  • 32 Ra ID Polish
  • Lockable handle prevents accidential actuation
  • Standard internal entry blow oout proof stem design
  • Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow
  • Compact deisgn for area with tight space restrictions
  • Fully encapsulated construction produces bubble tight seal
  • Identification tagging available
  • Balanced encapsulated construction minimizes cold flow


Specifications

  • CF8M Stainless Steel
  • Virgin PTFE, 15% glass reinforced RTFE, 25% carbon reinforced PTFE, 50% stainless steel reinforced PTFE or UHMW seat options
  • Available in 1/2"-4" sizes
  • Maximum pressure rating: 1/2"-2" 1000 PSI WOG, 2 1/2"-4" 800 PSI WOG
  • 3-way & V-Ball options available
  • Repair kits available upon request


Datasheets

Ball Valve Checklist
BV2CV-075CC-A Dimensional Specifications
Catalog Page
BV3S I & O Manual
BV3SSTR400C-A Dimensional Specifications
