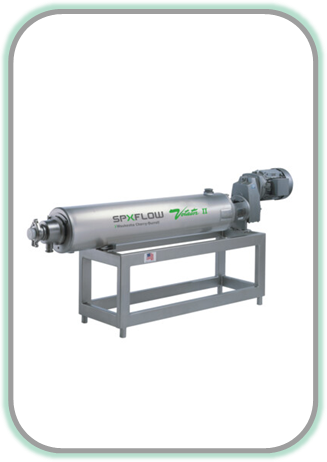

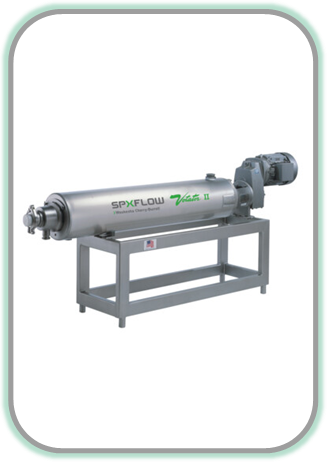

Waukesha Votator II Scrape Surface Heat Exchangers



Features & Specifications


  • For more than 80 years, Votator® scraped surface heat exchangers have been replacing slow, inefficient batching operations with more uniform, controllable and repeatable continuous processing. The Votator® II incorporates the most popular features of the Thermutator® and Votator® lines, making it extremely easy to maintain.
    The Votator® II and the Extra Heavy Duty Votator® II replace the Thermutator® and standard Votator® units, and is also available as a vertical unit.
  • 3-A, ASME, and PED-Certified
  • Single and Double Mechanical Seals
  • Greater material choices for various applications (ceramic, carbon, silicon carbide, and tungsten carbide)
  • Available in standard and narrow faces
  • Ease of maintenance and lower cost of ownership
  • PEEK™ Blades
  • 100% PEEK™ - no filler or inserts
  • Available in metal detectable version
  • Integral Gear Motor Drive
  • Gear drive is directly coupled to the mutator shaft eliminating the need for a secondary drive shaft and bearing block
  • Removable Heat Transfer Tube
  • Can be serviced without disturbing hydraulic lifting system, utility piping, or the drive assembly
  • Flange bolted to the jacket on the non-driven end, allows for quick removal
  • Reliable double o-ring seal on each end eliminates the need for an expansion joint
  • Heat Transfer Area
  • Units are available with up to 11 sq ft of heat transfer area (6 X 84)
  • Overall length of heat exchanger is reduced by 20 - 25%
  • Easy to maintain and self-aligning
  • Available with up to 30 horsepower for handling the most viscous products

Key Applications

Food Products
  • Heating and cooling cheese sauce
  • Pudding
  • Caramel
  • Deboned meat
  • Pet food
  • Fruit products
  • Soups
  • Sauces
  • Dressings
  • Syrups
  • Nut Butters
  • Gelatin
  • Margarine
Personal Care and Industrial Products
  • Shampoos & Conditioners
  • Deodorants
  • Paraffin
  • Caulk
  • Greases


Datasheets

Scraped Surface Heat Exchanger Brochure- Sanitary
Scraped Surface Heat Exchanger Brochure- Industrial
Votator II Manual
Votator Blade Overview
Legacy 4 x 120 Manual
SSHEX RFQ Form
Blade Product Features

Datasheets

Votator Materials of Construction Overview
SSHEX Markets Overview
SSHEX Tube Replacement Overview
SSHEX Tube Selection Guide
SSHEX Blade Selection Guide
Application Overview- Cooling, Crystalizing, & Re-melting Popcorn Oils
