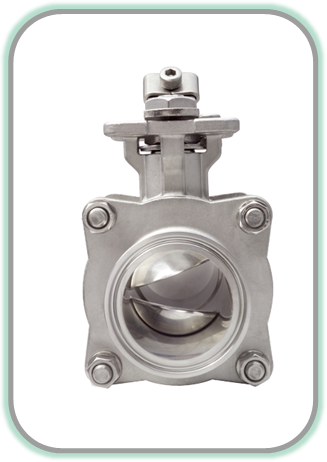

QSM Tru-Flo EA-33NF-SN-V Flow Control Valves



Features & Specifications

  • ASTM 316/316L stainless steel
  • 30 or 60 degree V-Ball options
  • 3-PC body design facilitate inspection and easy inline repair
  • Full port flow to tube ID without tapering
  • Highly-polished 8-12 Ra ID
  • Live loaded, self-adjusting packing and Belleville washers provide better sealing and defense against leaking
  • 3-PC, v-ring stem packing for superior sealing and lower torque
  • Blowout-proof, bottom entry stem design and anti-static device
  • ANSI B16/B2/B18, MSS-SP82, NSF61 AWWA
  • Body cavity fillers meet FDA, USDA, & 3A Requirements
  • Designed for high cycle automated applications
  • Standard TC ends; other ends available upon request
  • 100% tested and inspected prior to shipping
  • Full traceability of all components
  • SST x PTFE seats available for high temperature applications
  • Available in regular or cavity filled styles
  • Standard seats are TFM-1600
  • Cavity fillers are virgin PTFE (CFR 21 compliant)
  • Cavity filled valves suitable for vacuum applications

Datasheets

V-Port Ball Valves
Actuator Part Number Matrix
Ball Valve Pressure-Temp Chart
Ball Valves Seat Material Types
Valve Part Number Matrix
