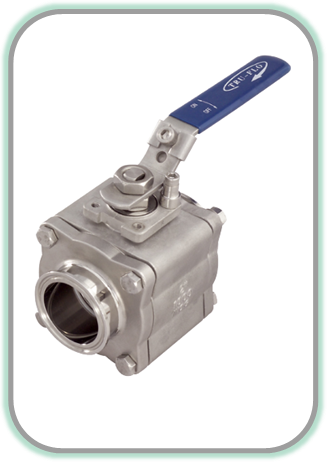

QSM Tru-Flo 5308/5309 High Purity Ball Valves



Features & Specifications

  • 1/2"-2" sizes feature an enclosed body bolt design
  • Live-loaded stem with self-adjusting packing and no internal tapers
  • Designed for high cycle automated applications
  • Highly polished internals and end caps 8-12 Ra
  • All materials comply with FDA, USDA, & 3A requirements
  • ASTM 316/316L stainless steel investment cast body and end caps
  • Available with Tri-Clamp or butt weld ends, butt weld ends have enteded tanges for orbital welding
  • 100% tested and inspected prior to shipping with full tracebability of all components parts
  • WEld end valves meet the ASME-BPE requirements for sulfurr and carbon
  • 3-PC body design for serviceabilty in line
  • TFM1600 & PTFE components meet CFR Title 21 Section 177.1550
  • All valves meet MSS SP-25, SP-82, SP-110, and ANSI B16 standards
  • Lubricant and silicone-free
  • Valve is passivated 316L material in regular or cavity filled

Datasheets

5308/5309 High Purity Ball Valves
Actuator Part Number Matrix
Ball Valve Pressure-Temp Chart
Ball Valves Seat Material Types
Valve Part Number Matrix
