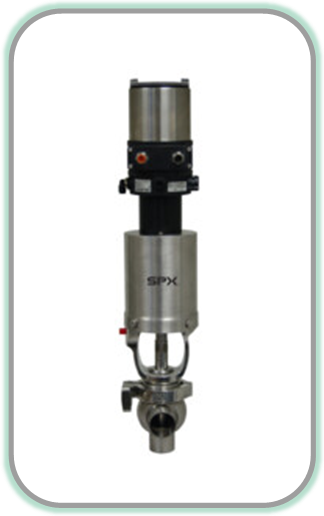

W68/W88 Series- Throttling/Regulating Single Seat Valves



Overview

Throttling or regulating valves are used to control flow, pressure, or level in high purity processing applications. Waukesha's W68 series of valves use a tapered stem seat to allow a calculated amount of flow through the valve as it opens or closes. W68 or W88 valves are typically equipped with a positioner.

Features

With multiple bodies, actuators, stem types and a wide range of control tops, these valves can be configured to precisely fit any application.
  • Bodies machined from solid bar 316L with laser welded ports
  • Stems available with low and high flow Cv Values
  • Standard "S" clamps used to connect adapters and bodies
  • High pressure capability
  • Seal options Tef-Flow, Tef-Flow P, Tri-Ring (FKM or EPDM), Metal Plug
  • Open yoke 3-A design



Specifications

Sizes:
Available in 1” to 6” (25mm – 152mm) OD sizes.
Materials:
Product Wetted: ASTM 316L (UNS-S31603); (DIN-1.4404)
Non-Product: ASTM 304 (UNS-S30400); (DIN-1.4301)
Seat Material:
  • Metal
  • Tri-Ring
Elastomers:
  • FKM (Standard)
  • EPDM (Option)
Finish: < 32Ra (<0.8 µm) Other finishes available upon request





Models & Functions

W68 Series- Throttling
W88 Series- Aseptic Stem Flush Throttling
W682 or W88- Divert Throttling
W685 or W885- Non-Slamming Divert Throttling



Positioner Configurations

Pneumatic Moore positioners use 3-15 psi  pneumatic control signal and air supply to drive seat plug into a certain position
Burkert Electropneuamitc positioners use a 4-20 mA electronic feedback signal between the valve stem sensor and a solenoid in the control top which adds or vents air into the actuator to move the plug seat up or down depending on the desired position.



Videos







Datasheets

W60 Series Shut-off and Divert Single Seat Valves
W80 Series Aseptic Stem Flush Valves
W68/W88/W98 Series Control Valves
Single Seat, Double Seat and Ball Valve Key

Flyers

Electropneumatic Positioner Upgrade
Construction - Mix Proof & Single Seat Valves - Product Features
Materials - Mix Proof & Single Seat Valves - Product Features
Single Seat Valve Actuators - Product Features


Manuals

W68 and W88 Series Throttling/Pressure Control Valves
Control Tops for Waukesha Cherry-Burrell Valves and Switch-Only Options
APV CU4 As-interface Control Unit
APV CU4 Direct Connect Control Unit
