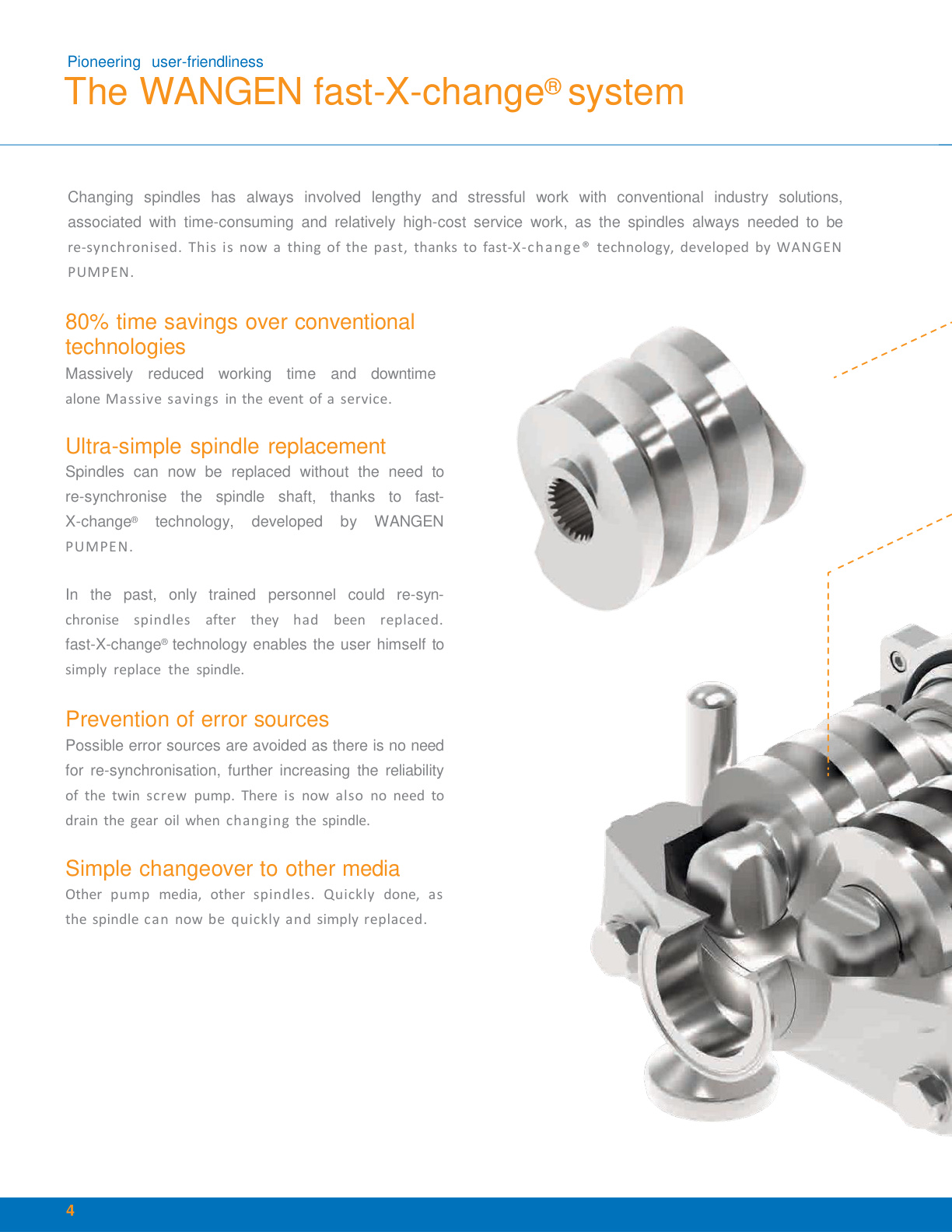

fast-X-change® screw service
Screws can be changed without re-synchronizing the screw shafts, reducing downtime and service complexity.
WANGEN America · Sanitary Twin Screw

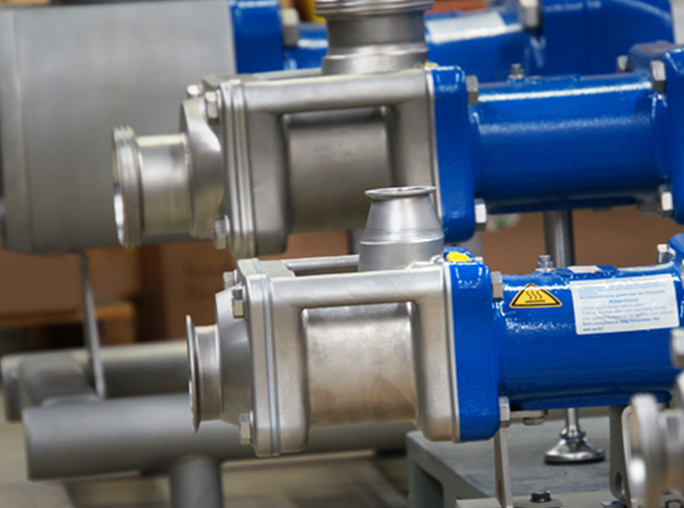

WANGEN Twin NG sanitary twin screw pump for product transfer and CIP.
The WANGEN Twin NG is a sanitary twin screw positive-displacement pump that combines gentle, low-pulsation product handling with the high-speed capability needed for CIP cleaning — one hygienic platform for viscous foods, beverages, dairy, confectionery, cosmetics, and chemical products.
Why processors choose it: fewer pumps, cleaner piping, faster service access, and product + cleaning media capability in one sanitary PD pump.
Product + CIPone pump platform
fast-X-changescrews without re-sync
Cartridge sealsservice-friendly design
3-A label*NG 70/104/130 3-A versions
01 — Overview
The next generation of WANGEN sanitary twin screw pumps.
The WANGEN Twin NG combines gentle, low-pulsation product transfer with high-speed CIP capability in one hygienic twin screw pump platform. For processors, that means fewer components, easier cleaning layouts, and service features designed to get the pump back online faster.
01
Two pumps in one
Run product gently at process speed, then run cleaning media at high speed for CIP duty.
02
Less service downtime
Screws can be replaced without re-synchronizing; seal cartridges simplify mechanical seal work.
03
Wide application window
Catalog coverage from low-viscosity fluids to 1,000,000 cP and up to 60% gas proportion.
04
VarioTwin option
Forced-feed module for non-flowable, very high-viscosity foods like dense dough.
02 — Visual Highlights
Service access, cartridge seals, CIP capability, and the full model range.
These visuals show the main Twin NG advantages before the buyer reaches the specification table: easier screw changes, simplified seal work, product + CIP capability, and four model sizes.

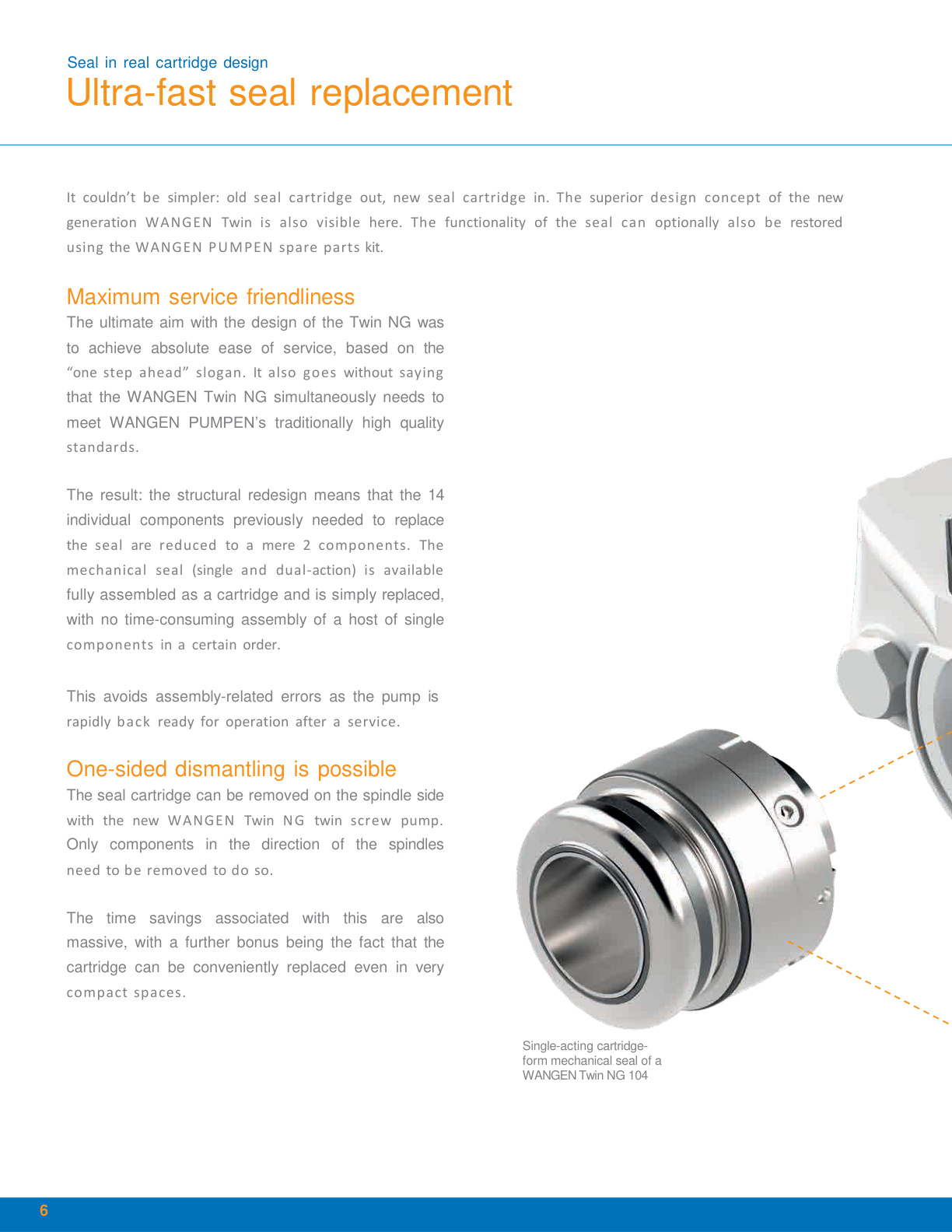

Cartridge mechanical seals
Drop-in cartridge design simplifies seal replacement and helps avoid assembly errors during maintenance.

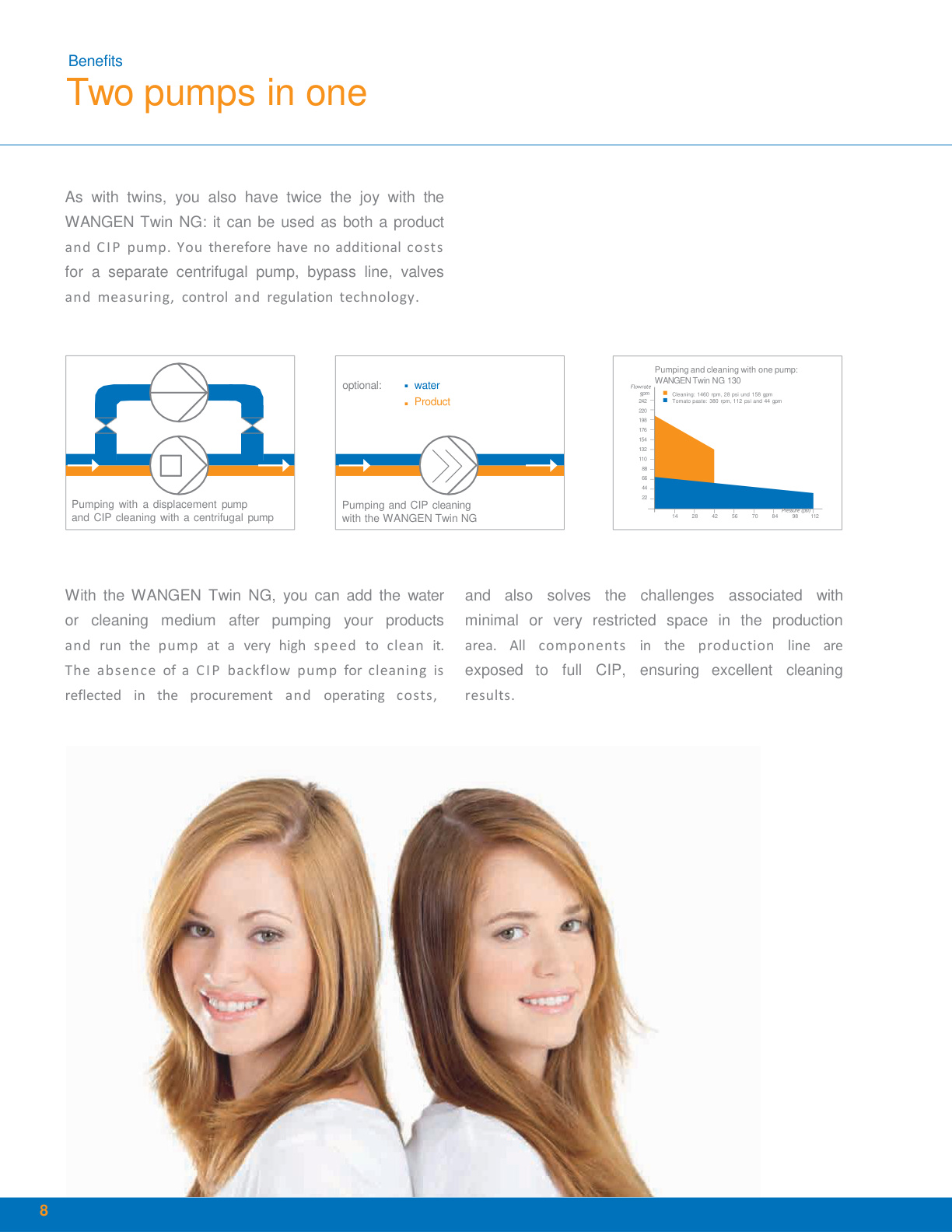

Product transfer + CIP
Low-speed product handling and high-speed cleaning media flow in one pump platform.

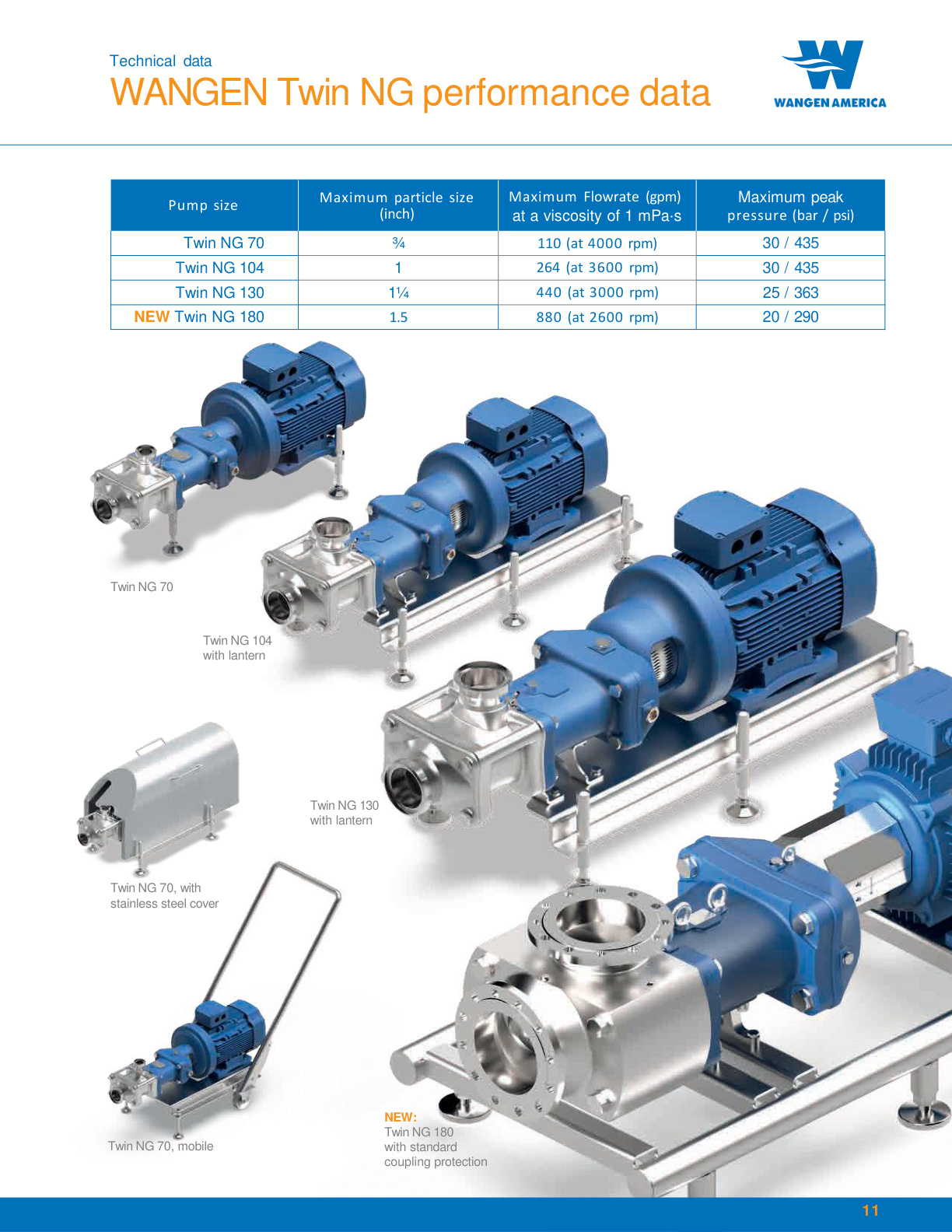

Four model sizes
NG 70, 104, 130, and 180 cover sanitary duties from smaller transfer to high-volume bulk handling.
03 — Videos
See the pump in real applications.
Dense dough, fruit prep, high-viscosity product, and particulate transfer are where the Twin NG and VarioTwin story is easiest to understand: gentle product movement, controlled feeding, and cleanability in sanitary service.
VarioTwin forced-feed context
Dense dough does not reliably gravity-feed like water or juice. This is where VarioTwin's separately driven, coreless feed screw helps present product consistently into the Twin NG.
Gentle transfer of product with pieces
Twin screw geometry moves product axially with low pulsation and low shear — useful when product appearance, particulates, or structure matter.
04 — Features
Engineered for hygiene and uptime.
Every design choice — from fast screw changes to cartridge seals and self-centering alignment — is aimed at predictable operation in demanding sanitary process environments.
- Product transfer and CIP in one pump — high speed range lets the same pump move product and cleaning medium.
- fast-X-change® screw system — replace screws without re-synchronizing the screw shafts.
- Up to 80% screw-service time savings — brochure claim versus conventional screw-change technologies.
- Cartridge mechanical seals — old cartridge out, new cartridge in; single-acting and double-acting cartridge options are shown in the literature.
- Self-centering flange housing / lantern option — helps avoid coupling re-alignment after service work.
- Large port connections — WANGEN brochure calls out large housing connectors for the respective housing sizes.
- Reversible pumping direction — useful for loading/unloading and line emptying.
- High suction lift — brochure lists NPSHR < 6 ft for the Twin NG platform.
- Low pulsation and gentle product handling — axial pumping and slow acceleration help protect sensitive media.
- Gas-handling capability — brochure lists up to 60% gas proportion possible.
- Wide viscosity range — brochure lists 0.5 cP low-viscosity performance and up to 1,000,000 cP.
- 3-A label on specific models — brochure identifies Twin NG 70 3-A, 104 3-A, and 130 3-A.
05 — Product + CIP
Product Pump + CIP Pump
One pump platform for process flow and cleaning flow.
With a conventional PD pump layout, processors often need a separate centrifugal CIP pump, bypass lines, valves, and controls to reach cleaning velocity. The Twin NG brochure positions the pump as a way to pump product and then run cleaning medium at high speed through the same production path.
That matters in crowded food plants: fewer components, fewer dead legs to engineer around, and a cleaner conversation for maintenance.
Final CIP layout depends on required cleaning velocity, line size, circuit design, and plant standards.
Catalog example from WANGEN brochure
WANGEN Twin NG 130
- Cleaning mode: 1460 rpm, 28 psi, 158 gpm.
- Tomato paste: 380 rpm, 112 psi, 44 gpm.
- Line push-out: brochure notes product-filled lines can be pushed out up to 30 bar / 420 psi.
06 — Specifications
Four sizes, one hygienic platform.
These are the brochure maximums at 1 mPa·s where specified. Actual pump selection must be based on the real product, duty point, suction conditions, solids, seal plan, and CIP target.
| Model | Max particle size | Max flow rate | Max peak pressure | Good fit |
|---|---|---|---|---|
| Twin NG 70 | 3/4 in | 110 GPM at 4000 rpm | 30 bar / 435 psi | Smaller sanitary transfer, metering, pilot/skid duty. |
| Twin NG 104 | 1 in | 264 GPM at 3600 rpm | 30 bar / 435 psi | General food, beverage, dairy, sauce, cosmetic transfer. |
| Twin NG 130 | 1-1/4 in | 440 GPM at 3000 rpm | 25 bar / 363 psi | Higher capacity viscous product plus CIP duties. |
| Twin NG 180 New | 1.5 in | 880 GPM at 2600 rpm | 20 bar / 290 psi | Large sanitary transfer and bulk handling applications. |
Maximum ratings are model and application dependent. Flow, pressure, viscosity, particle size, and CIP requirements must be reviewed together before final selection.
07 — VarioTwin
For Non-Flowable Products
Add VarioTwin when the problem is feeding the pump.
The WANGEN VarioTwin NG is a forced-feed module for the Twin NG when a product is too viscous or too non-flowable to rely on gravity. The product overview positions it for food products up to 3,000,000 cP, especially as a supply unit for Twin NG 104 and 130.
For dense bakery, confectionery, fruit prep, and other non-flowable products, VarioTwin helps bridge the gap between the hopper or mixer discharge and the Twin NG pump inlet.

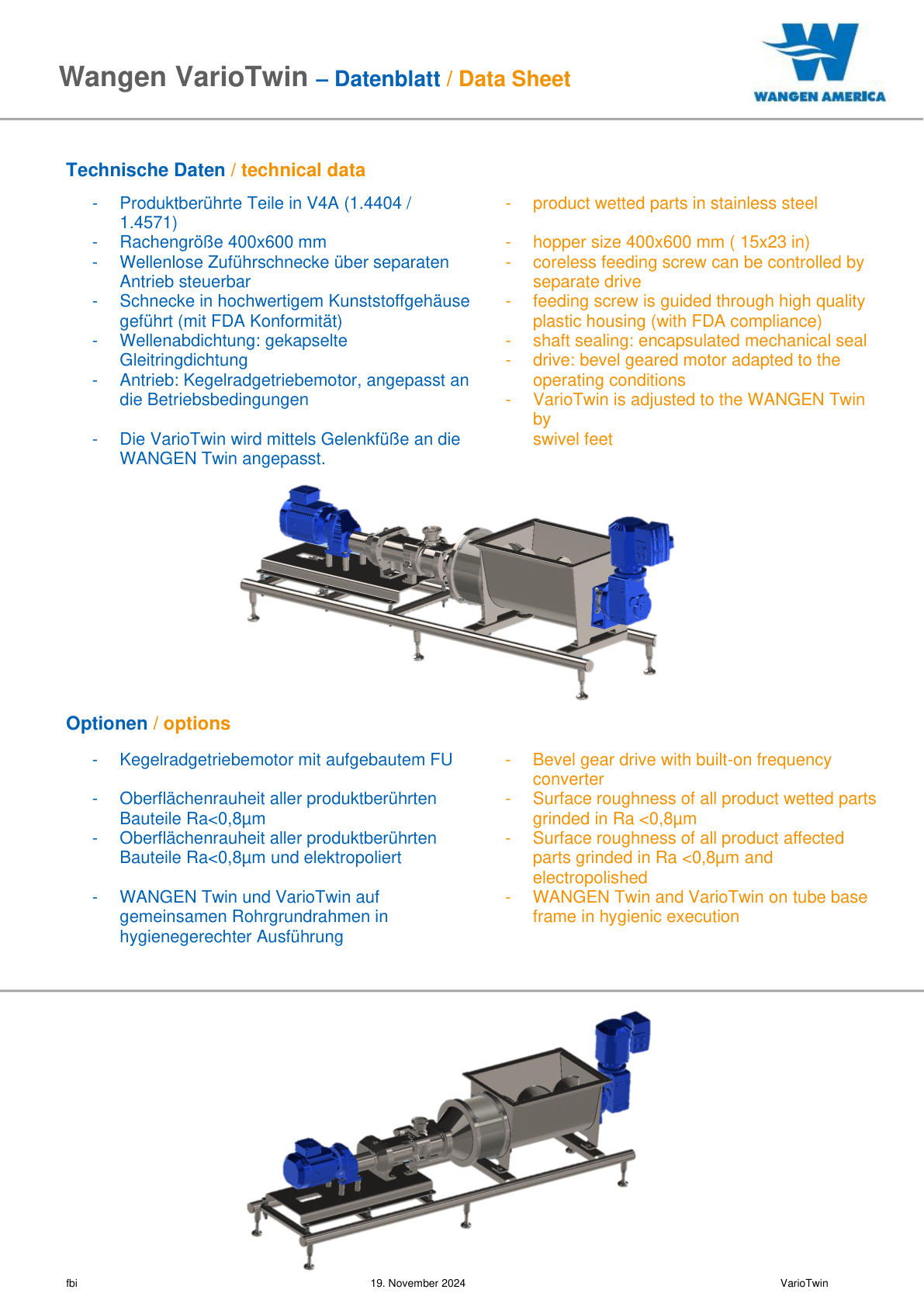

VarioTwin data sheet facts
- Product wetted parts: stainless steel 1.4404 / 1.4571.
- Hopper size: 400 x 600 mm / 15 x 23 in.
- Coreless feeding screw with separate drive.
- FDA-compliant plastic guide housing.
- Encapsulated mechanical seal.
- Total mass: 140 kg / 309 lb.
08 — Selection Guidance
Twin screw vs rotary lobe: choose the right PD technology.
Both rotary lobe and twin screw pumps have a place in sanitary processing. Rotary lobe pumps are familiar, serviceable, and effective for many transfer duties. Twin screw pumps are usually considered when the application needs a wider speed range, product + CIP capability, low pulsation, or controlled feeding for difficult products.
| Application need | WANGEN Twin NG | Rotary lobe |
|---|---|---|
| One pump for product and CIP flow | Strong fit — high speed range supports product transfer and cleaning media. | May still require separate CIP pump/bypass depending on system. |
| Very wide viscosity range | Brochure range down to 0.5 cP and up to 1,000,000 cP. | Good PD option, but check slip and speed limits for thin fluids. |
| Gentle handling with particulates | Axial flow, low pulsation, low shear; particle size by model up to 1.5 in. | Often good for sanitary solids transfer; confirm rotor style and clearances. |
| Simplest familiar PD pump | More capability, but usually more application-specific. | May be the simpler choice for straightforward sanitary transfer. |
| Non-flowable product like dough | Consider VarioTwin forced-feed module with Twin NG. | May struggle without a feed device/hopper design. |
09 — Applications
Where WANGEN Twin NG earns its keep
From juice concentrate and yogurt to chocolate, dressings, dough, creams, and adhesives, Twin NG covers a wide range of sanitary and process products.
Food & Beverage
- Pure juice, concentrate, mash
- Pulp, yeast
- Ketchup, mayonnaise, mustard
- Soups, salad dressings
- Strawberries, blueberries, cherries
- Animal feed
Dairy
- Yogurt
- Quark
- Cheese
- Custard
- Butter
Confectionery & Bakery
- Chocolate
- Fondant
- Liquid sugar
- Rework
- Sugar
- Dough with VarioTwin feed
Cosmetic & Chemical
- Creams, ointments, lotions
- Soaps, shampoos, shower gels
- Paints, varnishes
- Adhesives, glues, binders
- Suspensions, solutions, additives
10 — Sizing
What we need to size it correctly.
Every Twin NG is selected around the actual product and cleaning duty. Send the details below and Triplex can help confirm the right model, seal plan, port style, and VarioTwin requirement.
Product data
Fluid, temperature, viscosity range, solids/particle size, shear sensitivity, gas/air content, and whether the product is flowable.
Duty point
Normal/min/max flow, discharge pressure, suction conditions, line length/elevation, transfer direction, and line-emptying needs.
Sanitary package
CIP/SIP expectations, 3-A/EHEDG/FDA requirements, surface finish, port standards, seal plan, elastomers, and documentation.
Download pump application datasheetSubmit RFQGet sizing help
11 — Resources
Downloads and technical references.
Product literature, maintenance manuals, and reference documents for WANGEN Twin NG sizing, installation, and service.
Literature
Parts and service references
12 — FAQ
Questions customers actually ask.
Can one WANGEN Twin NG really handle both product and CIP?
Yes. The pump can run lower speed for product and higher speed for cleaning media. In the right system, that can reduce or eliminate separate CIP pump/bypass components. Final layout still depends on required cleaning velocity, line size, circuit design, and plant standards.
What is fast-X-change®?
fast-X-change is WANGEN's screw replacement system. The brochure states that screws can be replaced without re-synchronizing the screw shafts, reducing service time and possible timing errors.
Is the Twin NG 3-A certified?
The WANGEN brochure states that Pumpenfabrik Wangen GmbH is authorized to use the 3-A label for WANGEN Twin NG 70 3-A, 104 3-A, and 130 3-A. Confirm the exact certification package for the specific pump and options being quoted, especially seal configuration.
Can it run dry?
The Twin NG's contactless screws and the correct flushed or blocked mechanical seal plan help reduce dry-running risk during brief upset conditions. For applications where the pump may run without product, Triplex will confirm the right seal plan and protection strategy before quoting.
When do I need VarioTwin?
Use VarioTwin when the challenge is feeding a very viscous or non-flowable product into the pump. The VarioTwin data sheet describes a separately driven coreless feed screw, FDA-compliant guide housing, stainless wetted parts, and a 400 x 600 mm hopper.
How do I request a quote?
Send Triplex Sales the fluid, temperature, viscosity, flow, pressure, solids/particle size, suction conditions, CIP/SIP requirements, port standard, seal preference, and any 3-A/EHEDG/FDA documentation requirements. The Pump Application Datasheet is the easiest way to collect the information.
Ready to size a WANGEN Twin NG?
Send the duty point. Triplex will help build the right pump.
Give us the product, flow, pressure, viscosity, particles, cleaning requirements, and sanitary standards. We'll help confirm the right Twin NG model, VarioTwin need, seal plan, ports, surface finish, and documentation package.
